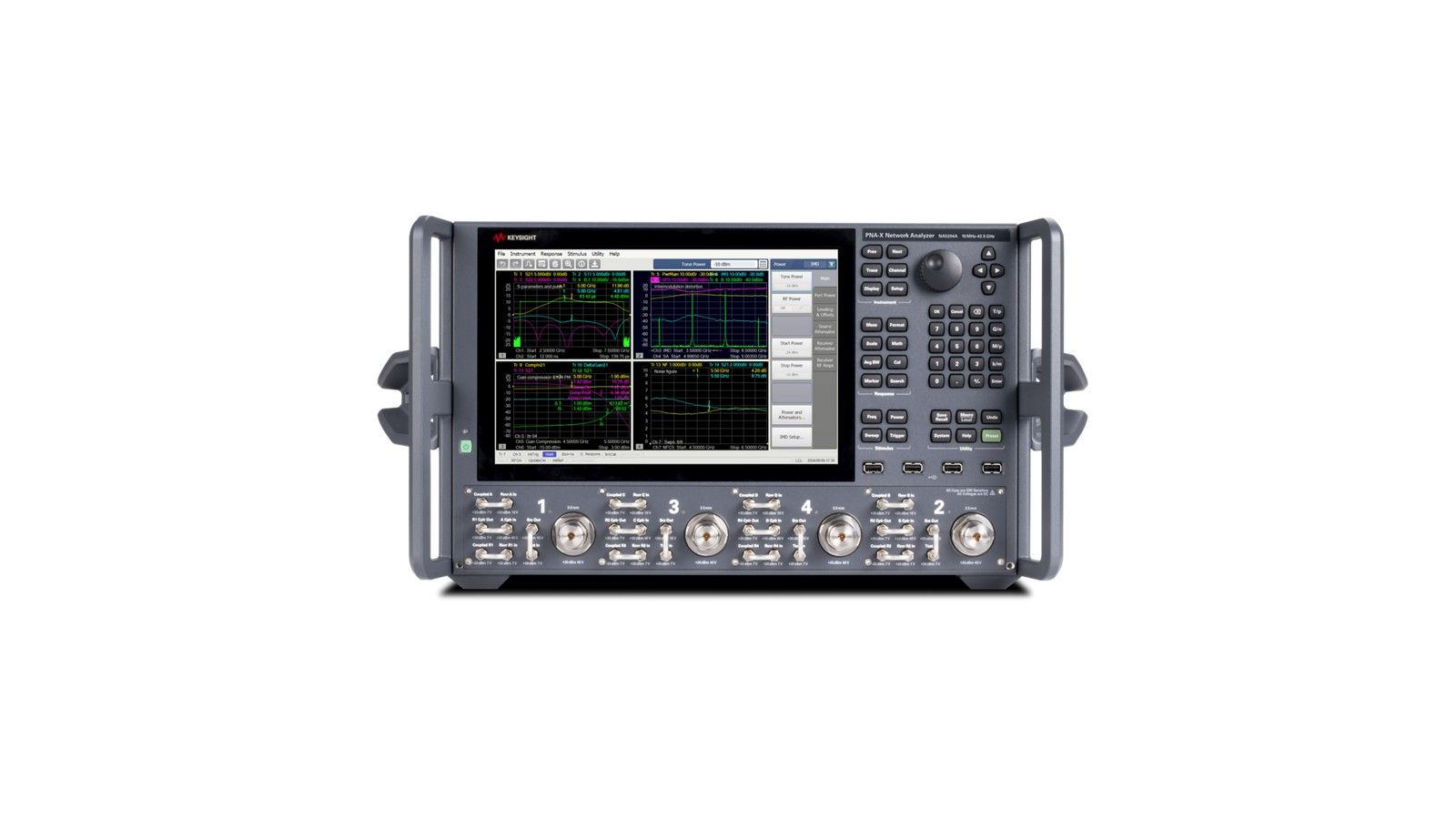

Keysight (Agilent) NA5204A
4-port, 10 MHz to 44 GHz PNA-X Pro Network Analyzer
10 MHz to 44 GHz Frequency Range
4 Number of Ports
144 dB (spec.) Dynamic Range
max. +12 dBm Output Power Range
2 Internal Sources
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 44 GHz |
| Number of Ports | 4 |
| Dynamic Range | 144 dB (spec.) |
| Output Power Range | max. +12 dBm |
| Internal Sources | 2 |
| Impedance | 50 Ω |
| Connector Type | 2.4 mm (m) |
| IF Bandwidth | 1 Hz … 15 MHz |
| Number of Points | max. 100,003 |
| Trace Noise | 0.002 dB rms |
| Measurement Parameters | S-parameters, noise figure (opt.), gain compression, IMD, pulsed RF, spectrum analysis (opt.), phase noise (opt.) |
| Display | 12.1" LCD, 1280×800, touchscreen |
| Interfaces | LAN, USB, USB-C, 2× GPIB, DisplayPort |
| Series | PNA-X Pro |
Keysight (Agilent) NA5204A Options:
- NA5204A - 201 - 2-port base model with six front-panel access loops
- NA5204A - 231 - 2-port configurable test set with source attenuators
- NA5204A - 239 - 2-port configurable test set, source attenuators, noise receiver
- NA5204A - 241 - 2-port configurable test set, source attenuators, bias tees, noise receiver
- NA5204A - 401 - 4-port base model with twelve front-panel access loops
- NA5204A - 431 - 4-port configurable test set, source attenuators, two sources
- NA5204A - 441 - 4-port configurable test set, source attenuators, bias tees, two sources
- NA5204A - 449 - 4-port configurable test set, source attenuators, bias tees, noise receiver, two sources
- NA5204A - 489 - 4-port configurable test set, source attenuators, bias tees, combiner, noise receiver, two sources
- NA5204A - 2RA - Receiver attenuators on all ports (2-port)
- NA5204A - 4RA - Receiver attenuators on all ports (4-port)
- NA5204A - UNY - Enhanced low phase noise
- NA5204A - D1F - IF access
- NA5204A - W1F - Wide IF bandwidth (up to 100 MHz)
- NA5204A - PM1 - Pulse modulation on RF source 1
- NA5204A - S93010B - Time-domain analysis (software)
- NA5204A - S93029B - Noise figure measurements (software)
- NA5204A - S93080B - Frequency offset measurements (software)
- NA5204A - S93083B - Vector and scalar mixer/converter measurements (software)
- NA5204A - S93086B - Gain compression measurements (software)
- NA5204A - S93087B - Intermodulation distortion measurements (software)
- NA5204A - S93090xB - Spectrum analysis (software)
The Keysight (Agilent) NA5204A is a 4-port PNA-X Pro vector network analyzer covering 10 MHz to 44 GHz.
Testwall can supply the used Keysight (Agilent) NA5204A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) NA5204A.
