Keysight (Agilent) U2000A
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 18 GHz |
| Power Range | -60 to +20 dBm |
| SWR | 1.13 to 1.26 max. |
| Connector | Type-N male |
| Interfaces | USB 2.0 |
| Sensor Type | USB average power sensor (diode) |
| Maximum Power | +25 dBm average, +33 dBm peak (<10 µs) |
| Measurement Speed | up to 110 readings/s (fast), 1000 readings/s (buffered) |
| Compatible Meters | standalone via PC (BenchVue); N9340A/B, MXG, PNA/PNA-L/PNA-X |
| Dimensions | 46 × 35.9 × 163.75 mm |
| Weight | 0.262 kg |
Compatible power meters

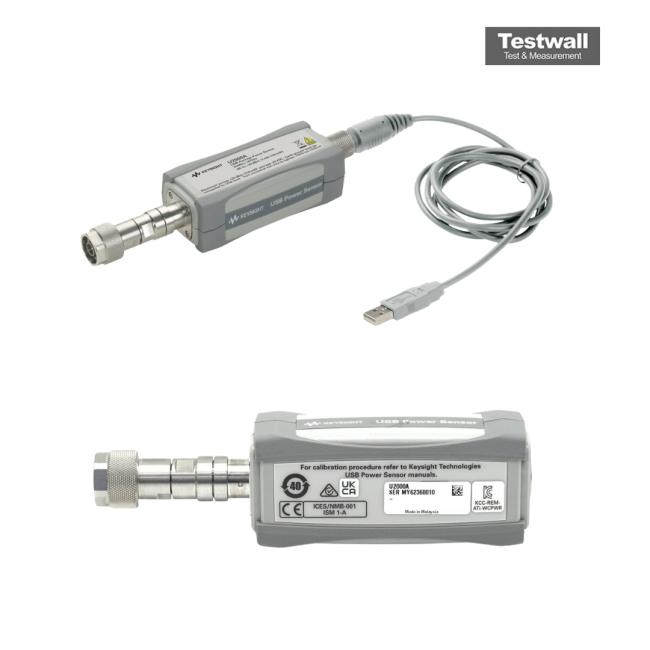

The Keysight (Agilent) U2000A USB Power Sensor operates across a 10 MHz to 18 GHz frequency range, offering a -60 to +20 dBm dynamic range. It features internal zeroing to avoid external calibration, supports fast 250 readings/second, and enables internal/external trigger measurements. No power meter needed—just connect it to a PC with the included software for trace display and real-time data acquisition.
Ideal for high-speed testing and integration into automated setups, the U2000A's software-controlled power measurement simplifies RF testing environments significantly.
Testwall can supply the used Keysight (Agilent) U2000A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) U2000A.
