Keysight (Agilent) U2004A
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 6 GHz |
| Power Range | -60 to +20 dBm |
| SWR | 1.13 to 1.19 max. |
| Connector | Type-N male |
| Interfaces | USB 2.0 |
| Sensor Type | USB average power sensor (diode) |
| Maximum Power | +25 dBm average, +33 dBm peak (<10 µs) |
| Measurement Speed | up to 110 readings/s (fast), 1000 readings/s (buffered) |
| Compatible Meters | standalone via PC (BenchVue); N9340A/B, MXG, PNA/PNA-L/PNA-X |
| Dimensions | 46 × 35.9 × 163.75 mm |
| Weight | 0.262 kg |
Compatible power meters
Keysight (Agilent) U2004A Options:
- U2004A - 1A7 - ISO 17025 calibration with test data
- U2004A - A6J - ANSI Z540 calibration with test data
- U2004A - OB1 - English language Operating and Service Guide
- U2004A - ABJ - Japanese language Operating and Service Guide

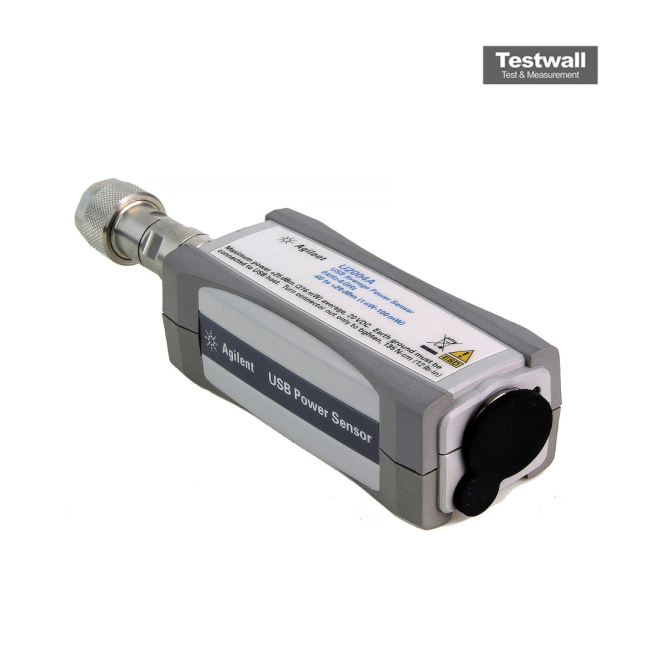

The Keysight (Agilent) U2004A USB Power Sensor offers an extensive frequency range from 9 kHz to 6 GHz and a wide dynamic range of -60 to +20 dBm. Its internal zeroing capability removes the need for external calibration, and it supports high-speed measurements up to 250 readings per second. Simply plug the sensor into your PC via USB and operate it with the free Power Panel (N1918A) software—no power meter needed.
Designed for fast, accurate RF power measurements, the U2004A enables real-time monitoring and seamless integration with other Keysight instruments or your PC for versatile testing environments.
Testwall can supply the used Keysight (Agilent) U2004A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) U2004A.
