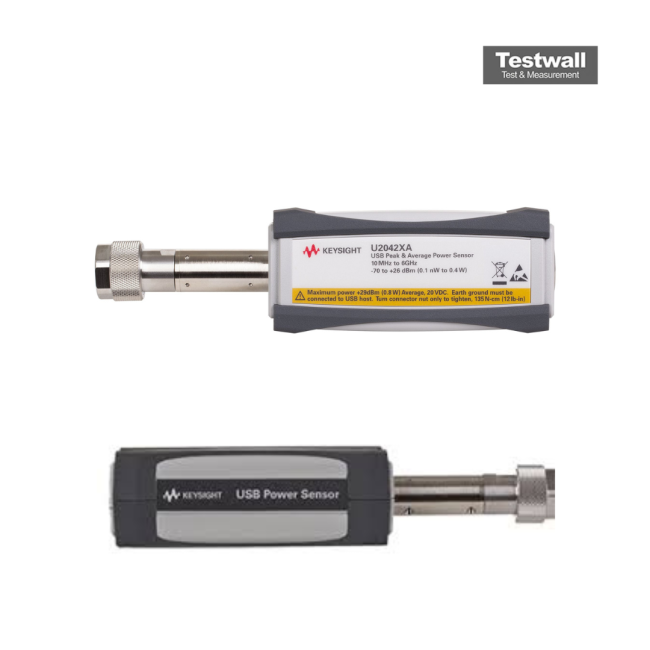

Keysight (Agilent) U2042XA
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 6 GHz |
| Power Range | -70 to +26 dBm |
| SWR | 1.20 max. |
| Video Bandwidth | 5 MHz |
| Rise Time | ≤100 ns |
| Sensor Type | peak and average (diode), wide dynamic range, USB |
| Maximum Power | +29 dBm average, +32 dBm peak (<10 µs) |
| Linearity | <1.0% (25 °C), <2.1% (0 to 55 °C) |
| Measurement Speed | 25000 readings/s (free run), 10000 readings/s (average, real-time) |
| Connector | Type-N male |
| Compatible Meters | standalone via PC (BenchVue) |
| Interfaces | USB 2.0 (USB-TMC) |
| Dimensions | 46 × 35 × 168 mm |
| Weight | 0.3 kg |
Keysight (Agilent) U2042XA Options:
- U2042XA - U2000A-201 - Transit case
- U2042XA - U2000A-202 - Soft carrying case
- U2042XA - U2000A-203 - Holster
- U2042XA - U2000A-204 - Soft carrying pouch
- U2042XA - U2000A-301 - USB cable 5 ft (1.5 m) – default selection
- U2042XA - U2000A-302 - USB cable 10 ft (3 m)
- U2042XA - U2000A-303 - USB cable 16.4 ft (5 m)
- U2042XA - U2031A - USB cable 5 ft (1.5 m)
- U2042XA - U2031B - USB cable 10 ft (3 m)
- U2042XA - U2031C - USB cable 16.4 ft (5 m)
- U2042XA - U2032A - BNC male to SMB female trigger cable, 50 Ω, 1.5 m
- U2042XA - BV0007A - BenchVue Power Meter Pro App license
- U2042XA - UK6 - Commercial calibration with test data
The Keysight (Agilent) U2042XA power sensor delivers a wide dynamic range from -70 to +26 dBm, allowing precise small signal measurements. It performs 50,000 real-time readings per second for high-throughput applications and zero dead time to ensure all pulses are measured. Featuring average mode time-selectivity, internal zeroing, and auto-calibration, it enhances measurement accuracy and saves time. Includes BenchVue BV0007B software license for seamless control and automation.
Ideal for fast, precise RF power measurements in manufacturing and R&D environments, with comprehensive time-selective averaging and high-speed acquisition capabilities.
Testwall can supply the used Keysight (Agilent) U2042XA, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) U2042XA.
