Rohde & Schwarz NRP18S-10
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 18 GHz |
| Power Range | 1 nW to 2 W (-60 to +33 dBm) |
| Maximum Power | 3 W average, 20 W peak (10 µs) |
| Video Bandwidth | >100 kHz (150 kHz typ.) |
| Rise Time | <5 µs (3 µs typ.) |
| Sensor Type | peak and average (3-path diode), high power |
| SWR | <1.14 (to 2.4 GHz), <1.20 (to 8 GHz), <1.25 (to 12.4 GHz), <1.30 (to 18 GHz) |
| Connector | Type-N male |
| Compatible Meters | NRX, NRP2 (legacy mode), PC via USB |
| Interfaces | USB |
| Dimensions | 48 × 30 × 184 mm |
| Weight | <0.27 kg |
Compatible power meters
Rohde & Schwarz NRP18S-10 Options:
- NRP18S-10 - NRP-Z4 - USB adapter cable (passive)
- NRP18S-10 - NRP-Z3 - USB adapter cable (active)
- NRP18S-10 - NRPZ-K1 - R&S NRPV license for one sensor
- NRP18S-10 - NRP-Z5 - Sensor hub

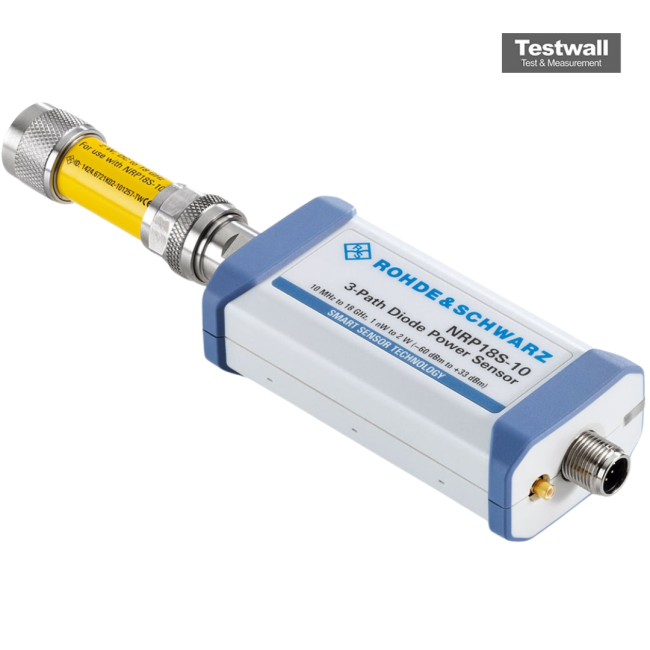

The Rohde and Schwarz NRP18S-10 is a high power three-path diode power sensor covering 10 MHz to 18 GHz with a wide dynamic range from -60 dBm to +33 dBm. It includes a 10 dB upstream attenuator and features an N (m) connector, supporting power measurements up to 2 W.
This sensor minimizes measurement uncertainty with intelligent averaging and versatile measurement functions. A USB Sensor Cable R&S NRP-ZKU or Power Sensor Cable R&S NRP-ZK6 is required for operation.
Testwall can supply the used Rohde and Schwarz NRP18S-10, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz NRP18S-10.
