Keysight (Agilent)
Keysight (Agilent) U2049XA
10 MHz to 6 GHz/33 GHz LAN Power Sensor
100 MHz to 67 GHz Frequency Range
-35 dBm to +20 dBm Power Range
2.4 mm (male) Connector Type
Up to 1,500 readings/second Measurement Speed
USB (compatible with Keysight U2000 series USB power sensor interface) Interface
| Attribute | Value |
|---|---|
| Frequency Range | 100 MHz to 67 GHz |
| Power Range | -35 dBm to +20 dBm |
| Connector Type | 2.4 mm (male) |
| Measurement Speed | Up to 1,500 readings/second |
| Interface | USB (compatible with Keysight U2000 series USB power sensor interface) |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Power Supply | USB bus powered (no external power supply required) |
| Dynamic Range | 55 dB |
| Measurement Uncertainty | ±0.5 dB (typical, at 50 GHz) |
Keysight (Agilent) U2049XA Options:
- U2049XA - Option 100 - LAN power sensor, 10 MHz to 33 GHz
- U2049XA - Option TVA - LAN power sensor, 10 MHz to 33 GHz, thermal vacuum option
- U2049XA - Option H06 - LAN power sensor, 10 MHz to 6 GHz
- U2049XA - U2035A - U2049XA sensor casing (for Options 100 and H06)
- U2049XA - U2036A - TVAC sensor bracket (for Option TVA only)
- U2049XA - U2038A - Single-port PoE injector
- U2049XA - U2034A - LAN cable 5 ft (1.5 m) – default selection Options 100 and H06
- U2049XA - U2034B - LAN cable 10 ft (3 m)
- U2049XA - U2034C - LAN cable 16.4 ft (5 m)
- U2049XA - U2034D - LAN cable 50 ft (15.2 m)
- U2049XA - U2034E - LAN cable 100 ft (30.5 m)
- U2049XA - U2034F - LAN cable 200 ft (61 m)
- U2049XA - U2037A - TVAC LAN cable 5 ft (1.5 m) – default selection for Option TVA
- U2049XA - U2037B - TVAC LAN cable 10 ft (3 m)
- U2049XA - U2037C - TVAC LAN cable 16.4 ft (5 m)
- U2049XA - U2037D - TVAC LAN cable 50 ft (15.2 m)
- U2049XA - U2037E - TVAC LAN cable 100 ft (30.5 m)
- U2049XA - U2037F - TVAC LAN cable 200 ft (61 m)
- U2049XA - U2032A - Standard trigger cable BNC Male to SMB female, 50 Ω, 1.5 m
- U2049XA - U2033A - TVAC trigger cable BNC Male to SMB female, 50 Ω, 1.5 m
- U2049XA - BV0007A - BenchVue Power Meter Pro App license
- U2049XA - UK6 - Commercial calibration with test data
| Model | U2049XA |
|---|

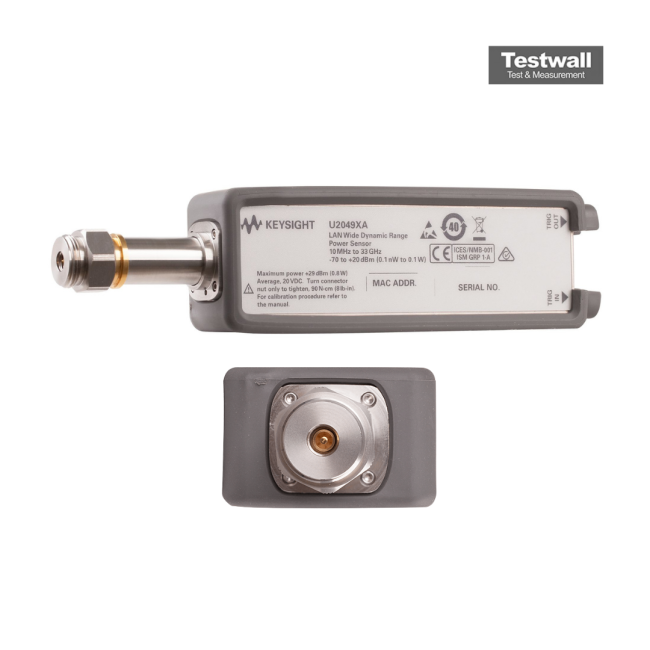

The Keysight (Agilent) U2049XA is a LAN-enabled peak and average power sensor operating from 10 MHz to 33 GHz, perfect for remote sensing and automated RF testing with unmatched dynamic range of –70 to +20 dBm.
Features include PoE-enabled LAN interface for up to 100 m operation, internal auto-zeroing, thermal-vacuum support with Option-TVA, and 5 MHz video bandwidth for accurate peak power analysis.
Testwall can supply the used Keysight (Agilent) U2049XA, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) U2049XA.
