Keysight (Agilent)

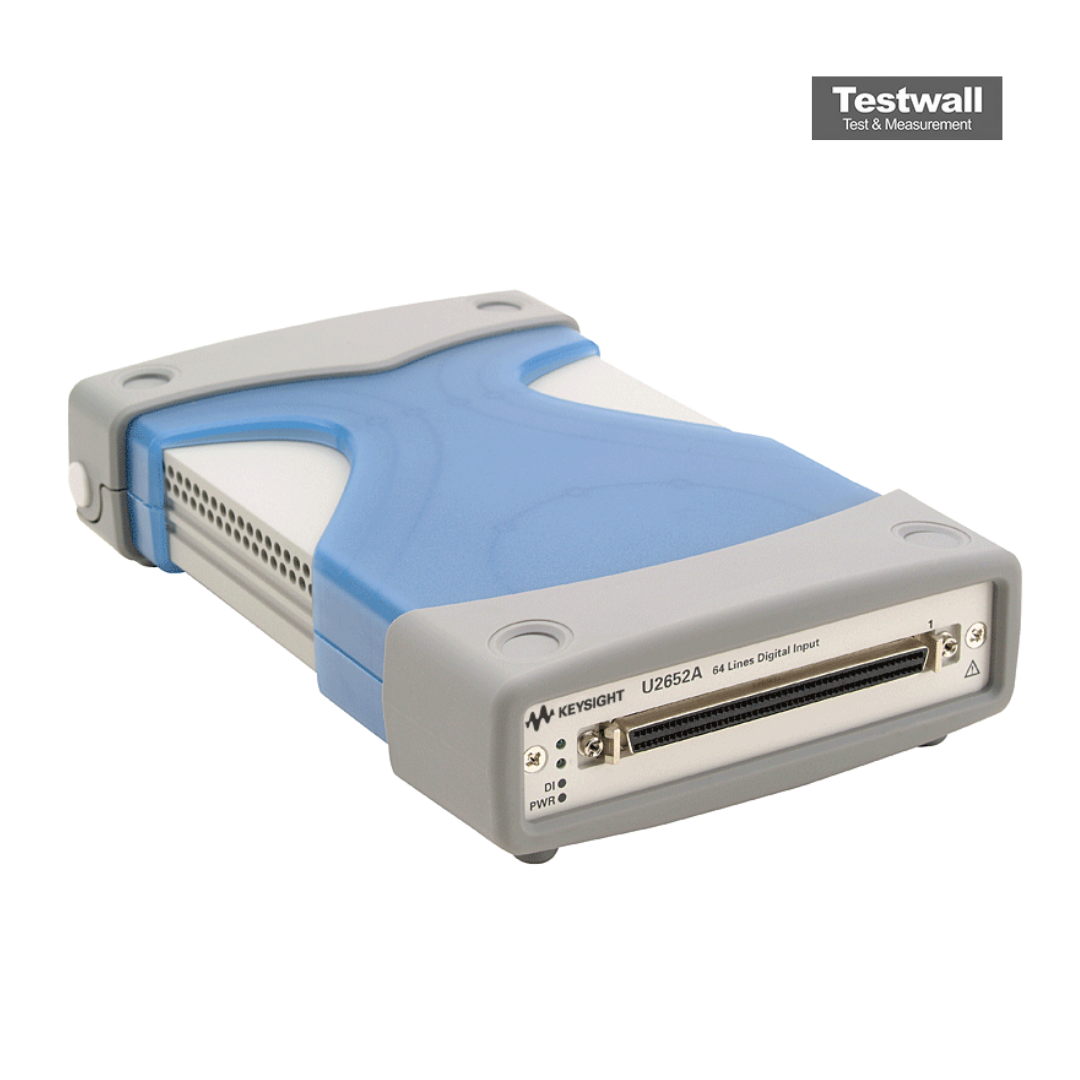

Keysight (Agilent) U2652A
64 Input USB Modular Digital I/O
32 Digital I/O Channels Number of Channels
USB 2.0 Interface
TTL/CMOS Compatible (0V to 5V) Logic Level
8 mA (sink), 2.5 mA (source) Maximum Output Current per Channel
5.5V Maximum Input Voltage
| Attribute | Value |
|---|---|
| Number of Channels | 32 Digital I/O Channels |
| Interface | USB 2.0 |
| Logic Level | TTL/CMOS Compatible (0V to 5V) |
| Maximum Output Current per Channel | 8 mA (sink), 2.5 mA (source) |
| Maximum Input Voltage | 5.5V |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Power Supply | USB Bus Powered |
| Software Compatibility | Compatible with Keysight VEE, LabVIEW, and IVI-COM/IVI-C Drivers |
| Form Factor | USB Modular DAQ (U2600 Series) |
Keysight (Agilent) U2652A Options:
- U2652A - U2903A - Terminal block and SCSI-II 100-pin connector with 1-meter cable
- U2652A - U2904A - Terminal block and SCSI-II 100-pin connector with 2-meter cable
| Model | U2652A |
|---|
The Keysight (Agilent) U2652A USB Digital I/O device features 64 opto-isolated input lines, 1250 Vrms isolation protection, and supports 10–24 V input voltage. It operates via high-speed USB 2.0 with USBTMC-USB488 standards.
Designed for standalone or modular use, it includes virtual port grouping, interrupt functions, and works seamlessly with BenchVue software for automated testing.
Testwall can supply the used Keysight (Agilent) U2652A USB Digital I/O, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) U2652A USB Digital I/O.
