Keysight (Agilent) U2751A
| Attribute | Value |
|---|---|
| Number of Channels | 4x8 (32 channels) |
| Matrix Configuration | 4 rows x 8 columns |
| Maximum Switching Voltage | 300 V DC / 250 V AC |
| Maximum Switching Current | 1 A |
| Maximum Switching Power | 50 W |
| Contact Resistance | 100 mΩ (initial) |
| Interface | USB 2.0 |
| Operating Temperature | 0°C to 55°C |
| Relay Type | Electromechanical Reed Relay |
| Form Factor | USB Modular Switch Matrix |
Keysight (Agilent) U2751A Options:
- U2751A - U2922A-201 - 32-channel terminal block
- U2751A - U2921A-101 - USB secure cable 2 m
| Model | U2751A |
|---|

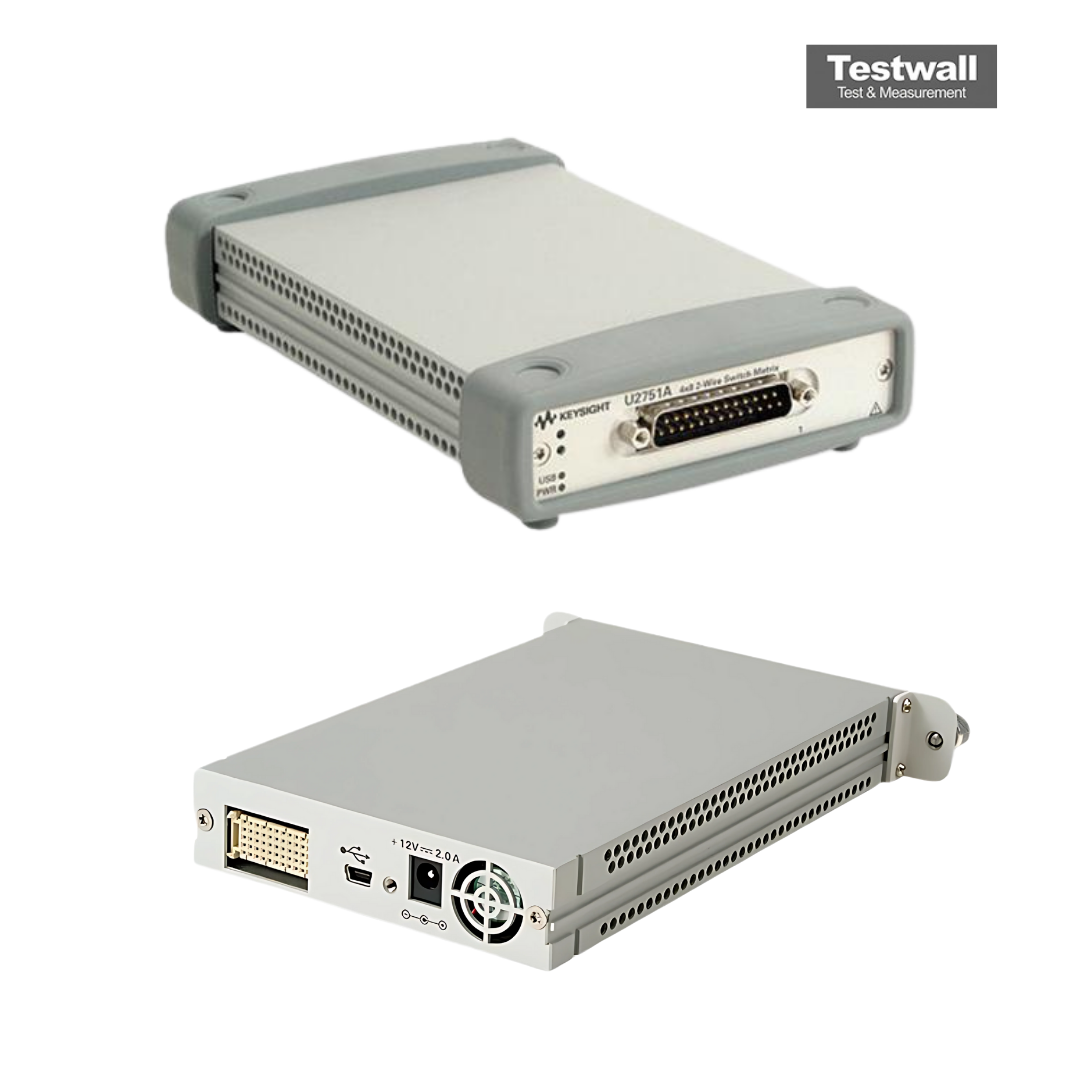

The Keysight (Agilent) U2751A is a 4x8 2-wire USB modular switch matrix offering a high bandwidth of up to 45MHz, with a flexible connection path for efficient test configurations. It supports a max 42V/2A load in standalone mode, delivers a -30dB crosstalk and < -3dB insertion loss at 45MHz. Features include a DB25 connector, high-speed USB 2.0 (USBTMC-USB488 standard), and compatibility with Microsoft® Windows®.
This versatile module works standalone or within the U2781A USB Modular Chassis, ideal for scalable test setups. Its 4ms max switching time ensures precise signal routing.
Testwall can supply the used Keysight (Agilent) U2751A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) U2751A.
