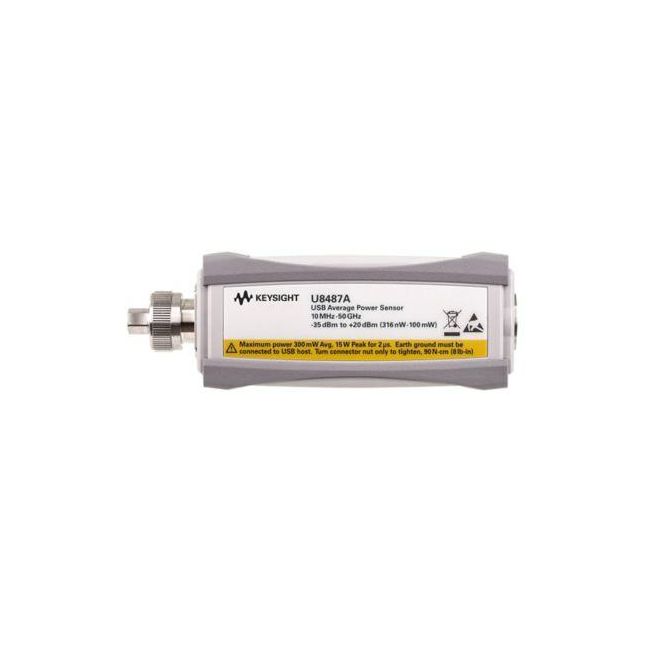

Keysight (Agilent) U8487A
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 50 GHz |
| Power Range | -35 to +20 dBm |
| Measurement Speed | 900 readings/s |
| Connector | 2.4 mm male |
| Sensor Type | USB average power sensor (thermocouple) |
| Maximum Power | +25 dBm average, 15 W peak (2 µs) |
| Linearity | 0.50% max. at -5 to +15 dBm, 0.55% max. at +15 to +20 dBm |
| Interfaces | USB 2.0, external trigger input |
Compatible power meters
Keysight (Agilent) U8487A Options:
- U8487A - 100 - Standard option – 10 MHz to 50 GHz
The Keysight (Agilent) U8487A Power Sensor covers a frequency range from 10 MHz to 50 GHz, offering ultra-fast measurement speeds exceeding 900 readings per second in fast buffer mode. It boasts a superior power linearity of less than 0.8%, a wide dynamic range from -35 dBm to +20 dBm, and includes advanced features such as real-time measurement uncertainty, S-parameter and gamma correction, and accurate traceability to NIST or NPL standards.
Ideal for high-frequency applications, the U8487A supports BenchVue software (BV0007B) for streamlined instrument control, test automation, and connectivity, enhancing user productivity in RF testing environments.
Testwall can supply the used Keysight (Agilent) U8487A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) U8487A.
