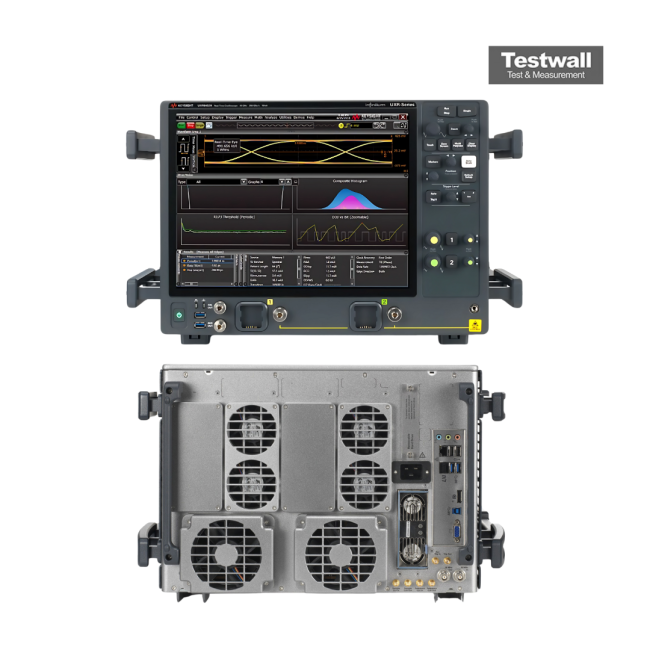

Keysight (Agilent) UXR0402A
40 GHz, 2 Channel Oscilloscope
40 GHz Bandwidth
2 Number of Channels
256 GSa/s Sample Rate
10 bits (up to 12 bits with noise floor enhancement) Vertical Resolution
2 Gpts per channel Memory Depth
| Attribute | Value |
|---|---|
| Bandwidth | 40 GHz |
| Number of Channels | 2 |
| Sample Rate | 256 GSa/s |
| Vertical Resolution | 10 bits (up to 12 bits with noise floor enhancement) |
| Memory Depth | 2 Gpts per channel |
| Rise Time | 10.7 ps |
| Input Impedance | 50 Ohm |
| Maximum Input Voltage | ±2.5 V (DC + peak AC) |
| Timebase Range | 5 ps/div to 20 s/div |
| Display | 15.6-inch capacitive touchscreen, 1920 x 1080 resolution |
Keysight (Agilent) UXR0402A Options:
- UXR0402A - UXR0000-01G - 1 Gpt per channel High Performance Memory
- UXR0402A - UXR0000-02G - 2 Gpts per channel High Performance Memory
- UXR0402A - N2130A-01G - Memory upgrade from 200 Mpts to 1 Gpts per channel
- UXR0402A - N2130A-02G - Memory upgrade from 1 Gpt to 2 Gpts per channel
- UXR0402A - N2129BU-014 - Bandwidth upgrade – 4-Channel Infiniium UXR – 40 GHz to 50 GHz
- UXR0402A - N2129BU-015 - Bandwidth upgrade – 4-Channel Infiniium UXR – 50 GHz to 59 GHz
- UXR0402A - N2129BU-016 - Bandwidth upgrade – 4-Channel Infiniium UXR – 59 GHz to 70 GHz
- UXR0402A - N2129BU-017 - Bandwidth upgrade – 4-Channel Infiniium UXR – 70 GHz to 80 GHz
- UXR0402A - N2129BU-018 - Bandwidth upgrade – 4-Channel Infiniium UXR – 80 GHz to 100 GHz
- UXR0402A - N2129BU-019 - Bandwidth upgrade – 4-Channel Infiniium UXR – 100 GHz to 110 GHz
- UXR0402A - N2125A - Infiniium UXR Real-Time Oscilloscope Calibration Module, 1 mm
- UXR0402A - N2126A - Infiniium UXR Real-Time Oscilloscope Calibration Module, 1.85 mm
- UXR0402A - N2127A - Infiniium UXR Real-Time Oscilloscope Calibration Module, 3.50 mm
- UXR0402A - N2131A-01T - Additional removable SSD for Infiniium UXR Real-Time Oscilloscope – 960GB
- UXR0402A - N2156A - Rack mount kit for Infiniium UXR Real-Time Oscilloscopes
- UXR0402A - N2158A - UXR Real-Time Oscilloscope Transportation case
- UXR0402A - D9010DMBA - De-embedding Software (Precision Probe, InfiniiSim Basic)
- UXR0402A - D9020JITA - EZJIT Complete - Jitter and Vertical Noise Analysis Software for V/Z/UXR-Series
- UXR0402A - D9020SCNA - InfiniiScan Event Identification Software for V/Z/UXR-Series
- UXR0402A - D9020ASIA - Advanced Signal Integrity Software (EQ, InfiniiSim Adv, Crosstalk)
- UXR0402A - D9010UDAA - User Defined Application Software
- UXR0402A - D9010PAMA - Pulse Amplitude Modulation PAM-N Analysis Software
- UXR0402A - D9010POWA - Power Integrity Analysis Software
- UXR0402A - D9010EXMA - External Mixer Assistant Software
- UXR0402A - D9010BSEO - Infiniium Offline - Base Software
- UXR0402A - D9010ASIO - Infiniium Offline - Adv Signal Integrity Software (InfiniiSim Adv/EQ/Crosstalk)
- UXR0402A - D9010JITO - Infiniium Offline - EZJIT Complete Software
- UXR0402A - D9010HSPO - Infiniium Offline - High Speed Protocol Software Bundle
- UXR0402A - D9010LSPO - Infiniium Offline - Low Speed Protocol Software Bundle
- UXR0402A - D9010AUTP - Automotive Protocol Decode/Trigger Software (CAN, LIN, CAN-FD, FlexRay ...)
- UXR0402A - D9010BDLP - Protocol Decode/Trigger Software Bundle (Low Speed, Auto, MIPI, Military …)
- UXR0402A - D9010EKRP - 10G/100GBASE-KR 64b/66b and Link Training Decode/Trigger Software
- UXR0402A - D9010EMBP - Embedded Protocol Decode/Trigger Software (USB2.0, 10/100 ETH, PCIe 2/1 ...)
- UXR0402A - D9010LSSP - Low Speed Protocol Decode/Trigger Software (I2C, SPI, RS232, I2S, JTAG ...)
- UXR0402A - D9010MCDP - MIPI CSI and DSI Protocol Decode/Trigger Software (C-PHY and D-PHY)
- UXR0402A - D9010MILP - Military Protocol Decode/Trigger Software (ARINC 429, MIL-STD 1553, SpaceWire)
- UXR0402A - D9010MPLP - Low Speed MIPI Protocol Decode/Trigger Software (RFFE, I3C, SPMI)
- UXR0402A - D9010MPMP - MIPI M-PHY Protocol Decode/Trigger Software (DigRF, LLI, CSI-3, UniPro, UFS, SSIC)
- UXR0402A - D9010PCIP - Advanced PCIe Protocol Decode/Trigger Software (PCIe 4/3/2/1, SATA/SAS)
- UXR0402A - D9010USBP - USB 3.x Protocol Decode/Trigger Software (USB 3.1 - 5 and 10 Gbps)
| Model | UXR0402A |
|---|
The Keysight (Agilent) UXR0402A offers an impressive 5 to 110 GHz bandwidth, unmatched low noise, high ENOB, and 10-bit vertical resolution, enabling precise signal visualization. It includes comprehensive probing and analysis tools for advanced applications.
Ideal for wideband mmWave analysis, the UXR0402A delivers EVM performance on par with top signal analyzers and supports time, frequency, and phase noise measurements on a fully upgradeable platform.
Testwall can supply the used Keysight (Agilent) UXR0402A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) UXR0402A.
