Teladyne LeCroy HDO4022 MS
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Number of Analog Channels | 2 |
| Number of Digital Channels | 16 |
| Sample Rate | 2.5 GS/s |
| Memory Depth | 12.5 Mpts/ch |
| Vertical Resolution | 12-bit ADC |
| Display | 12.1-inch color touchscreen LCD |
| Input Impedance | 1 MΩ or 50 Ω |
| Timebase Range | 200 ps/div to 1000 s/div |
| Connectivity | USB, Ethernet, HDMI |
Teladyne LeCroy HDO4022 MS Options:
- HDO4022 MS - HDO4K-L - 25 Mpts/ch (50 Mpts interleaved) memory
- HDO4022 MS - HDO4K-RHD - Removable Hard Drive Package (includes removable hard drive kit and two hard drives)
- HDO4022 MS - HDO4K-RHD-02 - Additional Removable Hard Drive
- HDO4022 MS - USB2-GPIB - External GPIB Accessory
- HDO4022 MS - HDO4K-SOFTCASE - Soft Carrying Case
- HDO4022 MS - HDO4K-RACK - Rack Mount Accessory
- HDO4022 MS - HDO4K-POUCH - Accessory Pouch
- HDO4022 MS - HDO4K-FP-GERMAN - German Front Panel Overlay
- HDO4022 MS - HDO4K-FP-FRENCH - French Front Panel Overlay
- HDO4022 MS - HDO4K-FP-ITALIAN - Italian Front Panel Overlay
- HDO4022 MS - HDO4K-FP-SPANISH - Spanish Front Panel Overlay
- HDO4022 MS - HDO4K-FP-JAPANESE - Japanese Front Panel Overlay
- HDO4022 MS - HDO4K-FP-KOREAN - Korean Front Panel Overlay
- HDO4022 MS - HDO4K-FP-CHNES-TR - Chinese (Traditional) Front Panel Overlay
- HDO4022 MS - HDO4K-FP-CHNES-SI - Chinese (Simplified) Front Panel Overlay
- HDO4022 MS - HDO4K-FP-RUSSIAN - Russian Front Panel Overlay
- HDO4022 MS - HDO4K-ET-PMT - Electrical Telecom Mask Test Package
- HDO4022 MS - HDO4K-SPECTRUM - Spectrum Analysis Option
- HDO4022 MS - HDO4K-PWR - Power Analysis Option
- HDO4022 MS - HDO4K-ARINC429bus DSymbolic - ARINC 429 Symbolic Decode Option
- HDO4022 MS - HDO4K-Audiobus TD - Audiobus Trigger and Decode Option for I2S, LJ, RJ, and TDM
- HDO4022 MS - HDO4K-AUTO - CAN, LIN and FlexRay Trigger and Decode Option
- HDO4022 MS - HDO4K-CAN FDbus TD - CAN FD Trigger and Decode Option
- HDO4022 MS - HDO4K-CANbus TD - CAN Trigger and Decode Option
- HDO4022 MS - HDO4K-DPHYbus D - D-PHY Decode Option
- HDO4022 MS - HDO4K-DigRF3Gbus D - DigRF 3G Decode Option
- HDO4022 MS - HDO4K-DigRFv4bus D - DigRF v4 Decode Option
- HDO4022 MS - HDO4K-ENETbus D - ENET Decode Option
- HDO4022 MS - HDO4K-FlexRaybus TD - FlexRay Trigger and Decode Option
- HDO4022 MS - HDO4K-EMB - I2C, SPI and UART Trigger and Decode Option
- HDO4022 MS - HDO4K-I2Cbus TD - I2C Bus Trigger and Decode Option
- HDO4022 MS - HDO4K-LINbus TD - LIN Trigger and Decode Option
- HDO4022 MS - HDO4K-Manchesterbus D - Manchester Decode Option
- HDO4022 MS - HDO4K-1553 TD - MIL-STD-1553 Trigger and Decode Option
- HDO4022 MS - HDO4K-NRZbus D - NRZ Decode Option
- HDO4022 MS - HDO4K-SENTbus D - SENT Decode Option
- HDO4022 MS - HDO4K-SPIbus TD - SPI Bus Trigger and Decode Option
- HDO4022 MS - HDO4K-SpaceWirebus D - SpaceWire Decode Option
- HDO4022 MS - HDO4K-UART-RS232bus TD - UART and RS-232 Trigger and Decode Option
- HDO4022 MS - HDO4K-USB2bus TD - USB 2.0 Trigger and Decode Option
- HDO4022 MS - HDO4K-USB2-HSICbus D - USB2-HSIC Decode Option
| Model | HDO4022 MS |
|---|

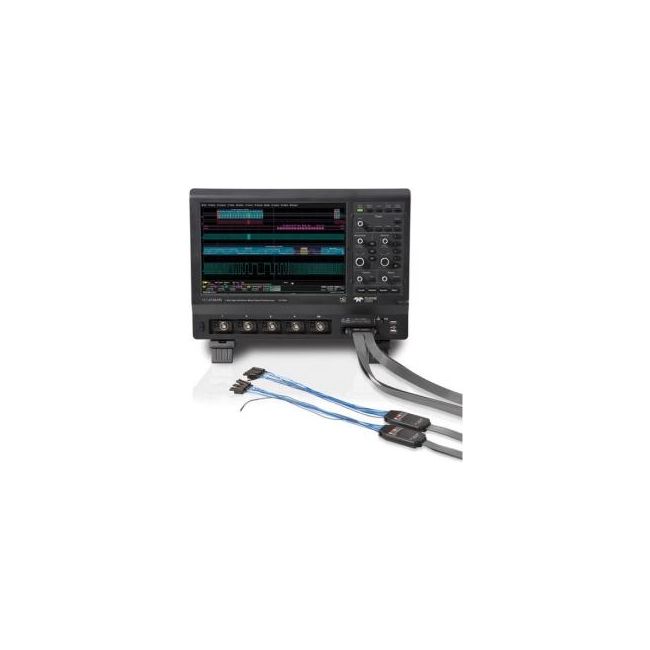

The Teledyne LeCroy HDO4022-MS Mixed-Signal Oscilloscope enhances the HDO4022 with 16 digital channels and analog-digital cross triggering for precise signal analysis. It delivers native 12-bit resolution, upgradeable to 15-bit, with deep memory up to 25 Mpts/Ch (50 Mpts interleaved). Offering bandwidth up to 1 GHz (configuration-dependent) and 1.25 GS/s digital capture, it is designed for comprehensive mixed-signal debugging.
Ideal for engineers handling complex analog and digital systems, it supports WaveScan, History Mode, and LabNotebook features for efficient troubleshooting and documentation.
Testwall can supply the used Teledyne LeCroy HDO4022-MS, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy HDO4022-MS.
