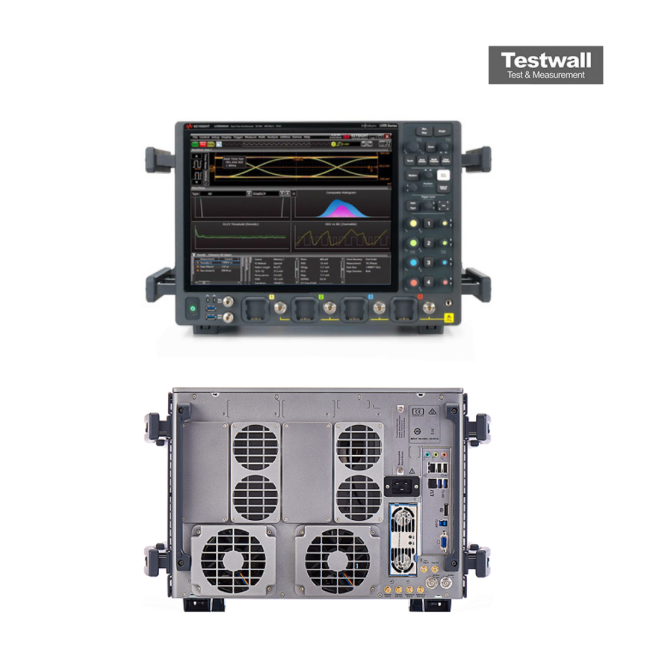

Keysight (Agilent) UXR0404AP
| Attribute | Value |
|---|---|
| Bandwidth | 40 GHz |
| Number of Channels | 4 |
| Sample Rate | 256 GSa/s |
| Vertical Resolution | 10-bit ADC (up to 12-bit with enhanced resolution) |
| Memory Depth | Up to 2 Gpts per channel |
| Rise Time | 8.75 ps |
| Input Impedance | 50 Ohm |
| Voltage Range (Full Scale) | 10 mV/div to 1 V/div |
| Timebase Range | 2 ps/div to 4 ks/div |
| Display | 15.6-inch capacitive touchscreen (1920 x 1080 resolution) |
Keysight (Agilent) UXR0404AP Options:
- UXR0404AP - UXR0000-01G - 1 Gpt per channel High Performance Memory
- UXR0404AP - UXR0000-02G - 2 Gpts per channel High Performance Memory
- UXR0404AP - N2130A-01G - Memory upgrade from 200 Mpts to 1 Gpts per channel
- UXR0404AP - N2130A-02G - Memory upgrade from 1 Gpt to 2 Gpts per channel
- UXR0404AP - N2129BU-014 - Bandwidth upgrade – 4-Channel Infiniium UXR – 40 GHz to 50 GHz
- UXR0404AP - N2129BU-015 - Bandwidth upgrade – 4-Channel Infiniium UXR – 50 GHz to 59 GHz
- UXR0404AP - N2129BU-016 - Bandwidth upgrade – 4-Channel Infiniium UXR – 59 GHz to 70 GHz
- UXR0404AP - N2129BU-017 - Bandwidth upgrade – 4-Channel Infiniium UXR – 70 GHz to 80 GHz
- UXR0404AP - N2129BU-018 - Bandwidth upgrade – 4-Channel Infiniium UXR – 80 GHz to 100 GHz
- UXR0404AP - N2129BU-019 - Bandwidth upgrade – 4-Channel Infiniium UXR – 100 GHz to 110 GHz
| Model | UXR0404AP |
|---|
The Keysight (Agilent) UXR0404AP features a 40 GHz bandwidth across four full-bandwidth channels, powered by 10-bit ADCs and sampling at 256 GSa/s on all inputs. It includes up to 2 Gpts memory, upgradeability to 110 GHz, 1 mm connector inputs, high-speed SDA, and clock recovery functionality. On-site self-calibration is supported via an optional calibration module and user-defined functions enhance testing flexibility.
This oscilloscope is ideal for ultra-fast signal capture, enabling deep signal insights and precise measurements across high-frequency applications. It supports user-configured analysis tools for demanding test scenarios.
Testwall can supply the used Keysight (Agilent) UXR0404AP, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) UXR0404AP.
