Keysight (Agilent)
Keysight (Agilent) UXR1104A
Infiniium UXR, 110 GHz, 256 GSa/s, 4-Ch, 1mm input, 200 VAC min power input.
110 GHz Bandwidth
4 Number of Channels
256 GSa/s Sample Rate
10-bit ADC Vertical Resolution
2 Gpts per channel Memory Depth
| Attribute | Value |
|---|---|
| Bandwidth | 110 GHz |
| Number of Channels | 4 |
| Sample Rate | 256 GSa/s |
| Vertical Resolution | 10-bit ADC |
| Memory Depth | 2 Gpts per channel |
| Rise Time | 3.2 ps |
| Input Impedance | 50 Ω |
| Waveform Update Rate | Up to 400,000 waveforms/second |
| Display | 15.6-inch capacitive touchscreen, 1920 x 1080 resolution |
| Operating System | Windows 10 |
| Model | UXR1104A |
|---|

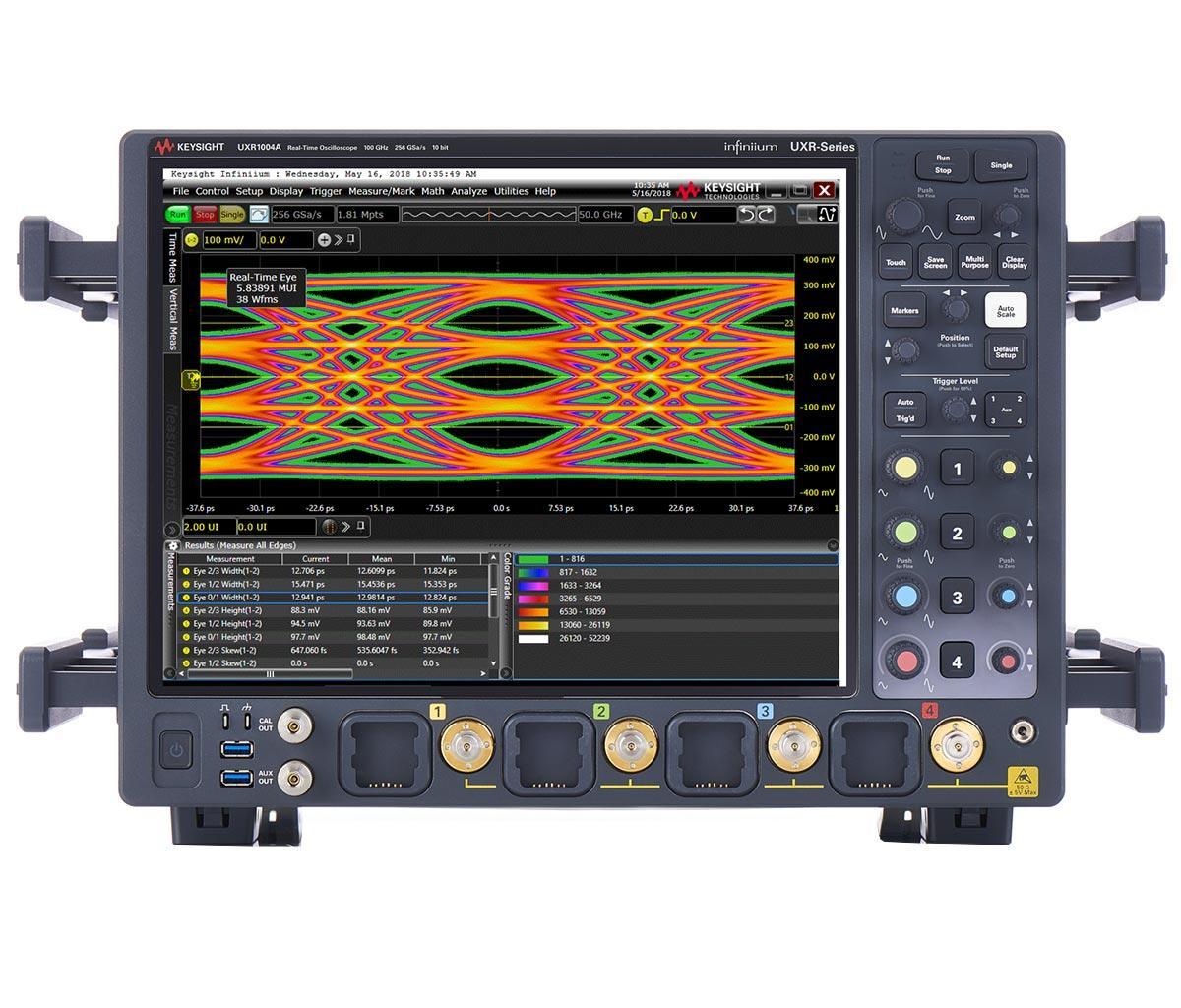

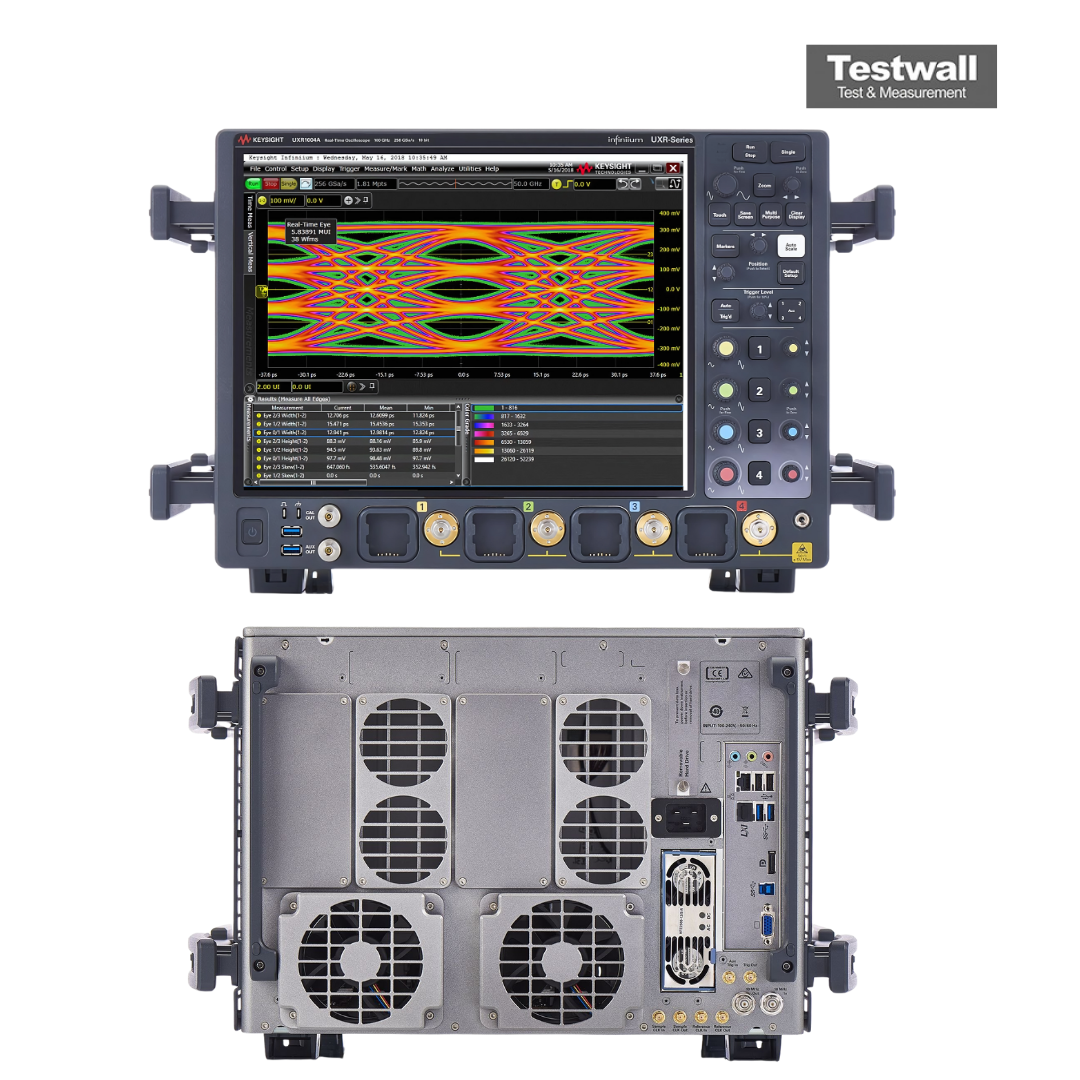

The Keysight (Agilent) UXR1104A Infiniium Oscilloscope features 110 GHz bandwidth on four channels, each sampling at 256 GSa/s with 10-bit ADC resolution for unprecedented accuracy and clarity.
Its advanced ASIC and memory controller deliver 5 trillion IOPS for faster performance and upgradability in bandwidth, memory, and channel count.
Testwall can supply the used Keysight (Agilent) UXR1104A Infiniium Oscilloscope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) UXR1104A Infiniium Oscilloscope.
