Kikusui

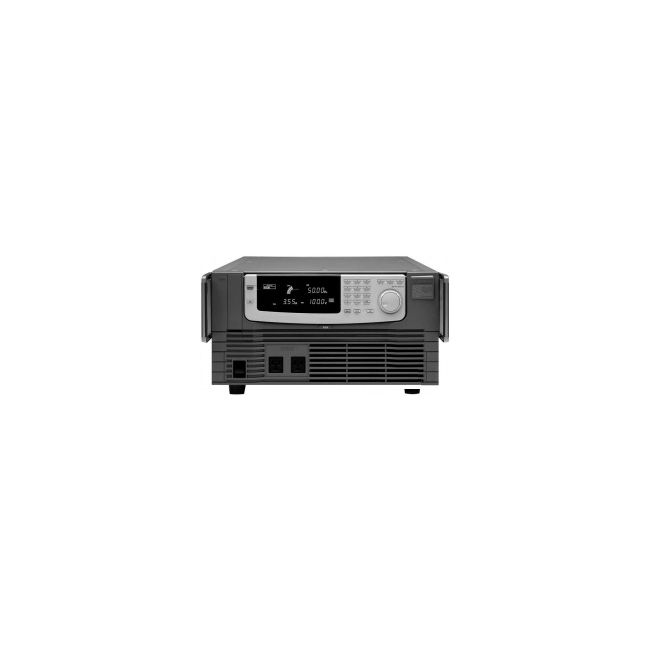

Kikusui PCR1000L
1000VA Voltage/Frequency Converter
1000 VA Output Capacity
0 – 150 V / 0 – 300 V (Switchable) Output Voltage Range
45 – 999.9 Hz Output Frequency Range
6.7 A (150 V range) / 3.3 A (300 V range) Output Current (Max)
Single Phase 100 – 240 V AC Input Voltage
| Attribute | Value |
|---|---|
| Output Capacity | 1000 VA |
| Output Voltage Range | 0 – 150 V / 0 – 300 V (Switchable) |
| Output Frequency Range | 45 – 999.9 Hz |
| Output Current (Max) | 6.7 A (150 V range) / 3.3 A (300 V range) |
| Input Voltage | Single Phase 100 – 240 V AC |
| Input Frequency | 47 – 63 Hz |
| Voltage Accuracy | ±(0.5% of set + 0.5% of rating) |
| Frequency Accuracy | ±0.1% of set value |
| Output Waveform | Sine Wave |
| Dimensions (W x H x D) | 215 mm x 132 mm x 450 mm |
| Model | PCR1000L |
|---|
Output 1 to 300 Volts AC or 424 Volts DC
Maximum 24 Amp Output
Single Output
Maximum Power Output 1000 VA
1kVA Voltage & frequency converter
Voltage. current. frequency and power metering
Input 85 - 250V AC. 47 - 63Hz
