Kikusui

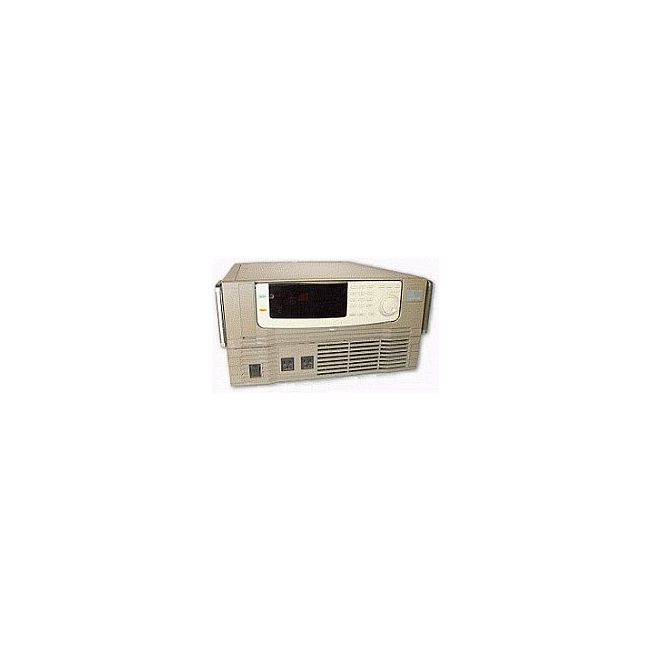

Kikusui PCR500L
0.5KVA AC Power Source
500 VA Output Capacity
0 – 150 V / 0 – 300 V (switchable) Output Voltage Range
40 Hz – 999.9 Hz Output Frequency Range
3.3 A (150 V range) / 1.7 A (300 V range) Output Current (Max)
Single-phase 100 V / 200 V AC (switchable) Input Voltage
| Attribute | Value |
|---|---|
| Output Capacity | 500 VA |
| Output Voltage Range | 0 – 150 V / 0 – 300 V (switchable) |
| Output Frequency Range | 40 Hz – 999.9 Hz |
| Output Current (Max) | 3.3 A (150 V range) / 1.7 A (300 V range) |
| Input Voltage | Single-phase 100 V / 200 V AC (switchable) |
| Input Frequency | 47 Hz – 63 Hz |
| Voltage Setting Resolution | 0.1 V |
| Frequency Setting Resolution | 0.1 Hz |
| Output Waveform | Sine wave |
| Cooling Method | Forced air cooling (fan) |
Kikusui PCR500L Options:
- PCR500L - RC02-PCR-L - Remote controller
- PCR500L - IB11-PCR-L - GPIB interface
- PCR500L - RS11-PCR-L - RS-232C interface
- PCR500L - 408J-101 - GPIB cable 1 m
- PCR500L - 408J-102 - GPIB cable 2 m
- PCR500L - 408J-104 - GPIB cable 4 m
- PCR500L - PD02M-PCR-L - Parallel operation driver (for master)
- PCR500L - PD02S-PCR-L - Parallel operation driver (for slave)
- PCR500L - 3P02-PCR-L - Three-phase output driver
- PCR500L - KRB250 - PCR500L millimeter size rack mounting brackets (JIS)
- PCR500L - KRB5 - PCR500L inch size rack mounting brackets (EIA)
| Model | PCR500L |
|---|
Kikusui PCR-500L PCR500L AC Power Supply 0-100V @ 5A or 0-200V @ 2.5A (500VA max) 1HZ-999.9HZ
