Kikusui PLZ-334W
| Attribute | Value |
|---|---|
| Maximum Power | 300 W |
| Maximum Input Voltage | 150 V |
| Maximum Input Current | 60 A |
| Minimum Operating Voltage | 1.5 V |
| Operating Modes | Constant Current (CC), Constant Voltage (CV), Constant Resistance (CR), Constant Power (CW) |
| Input Voltage Range | 1.5 V – 150 V |
| Interface / Connectivity | USB, RS-232C, GP-IB (optional) |
| Dynamic Mode (Transient Operation) | Supported; adjustable frequency and duty cycle for simulating load transients |
| Power Supply Requirement | AC 100–240 V, 50/60 Hz |
| Dimensions (W × H × D) | 213 mm × 88 mm × 350 mm (approximately 2U half-rack size) |
| Model | PLZ-334W |
|---|

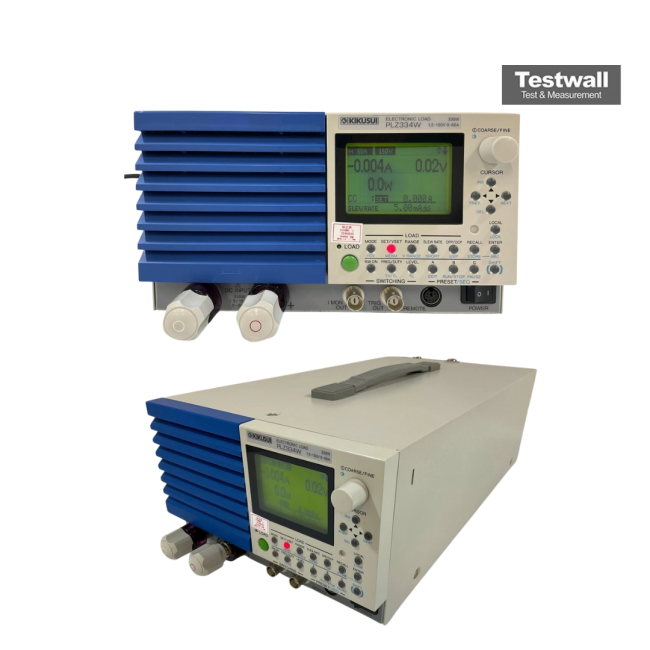

The Kikusui PLZ-334W 330W Electronic Load is a high-performance DC electronic load designed to meet modern testing demands for power supplies, batteries, DC/DC converters, and fuel cells. It operates in six modes including constant current, voltage, resistance, power, and hybrid modes, delivering a maximum slew rate of 16 A/µs and resolution down to 10 µA. Features include soft start, variable slew rate, ABC preset memory, 100 setup memories, sequence, timer, and battery discharge measurement functions, with master/slave parallel capability.
With expandable capacity up to 9 kW and 1800 A using booster units, and multiple interfaces (GPIB, RS-232C, USB 2.0) supporting IEEE 488.2 and SCPI, it ensures versatile connectivity and efficient workflow.
Testwall can supply the used Kikusui PLZ-334W 330W Electronic Load, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Kikusui PLZ-334W 330W Electronic Load.
