Kikusui

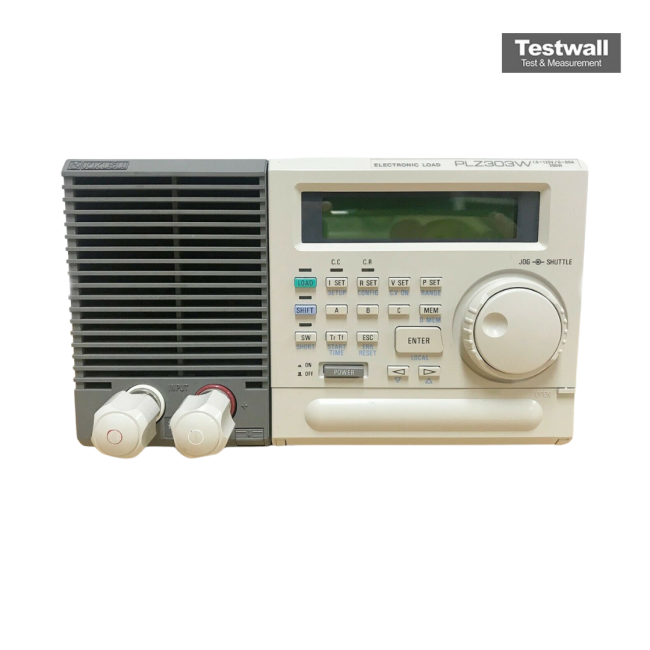

Kikusui PLZ303W
300W Electronic Load
300 W Maximum Power
150 V Maximum Voltage
60 A Maximum Current
1.5 V Minimum Operating Voltage
CC, CV, CR, CP Operating Modes
| Attribute | Value |
|---|---|
| Maximum Power | 300 W |
| Maximum Voltage | 150 V |
| Maximum Current | 60 A |
| Minimum Operating Voltage | 1.5 V |
| Operating Modes | CC, CV, CR, CP |
| Input Voltage (AC) | 100 – 240 VAC, 50/60 Hz |
| Interface | USB, GP-IB (optional), RS-232C (optional) |
| Dynamic Mode Frequency | Up to 10 kHz |
| Dimensions (W x H x D) | 213 mm x 88 mm x 351 mm |
| Weight | Approximately 4.5 kg |
| Model | PLZ303W |
|---|
Wattage: 0 to 300 W
Current: 0 to 60 A
Voltage: 1.5 to 120 VDC
Current ranges: 0 to 6 A, 0 to 60 A
Constant power mode
Rapid response (50 ?S)
