Laversab

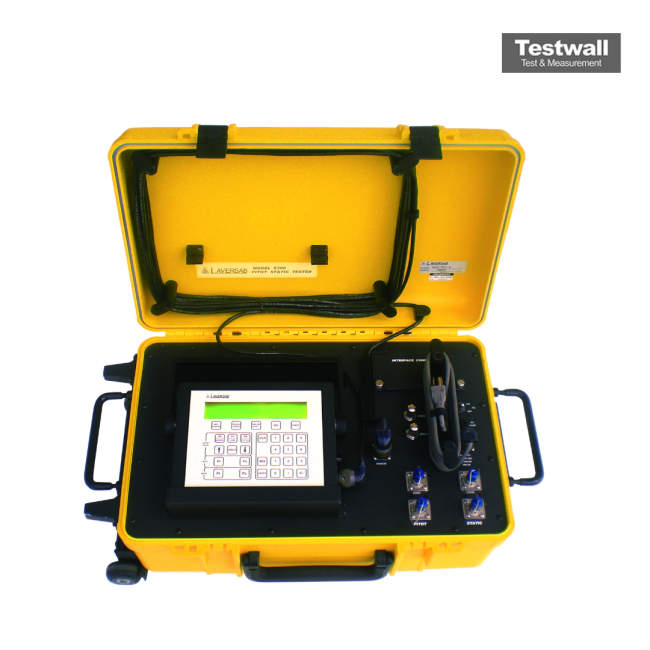

Laversab 6300
Automated Pitot Static Tester
-1,000 ft to 100,000 ft Altitude Range
0 to 1,100 knots (CAS) Airspeed Range
±2 ft at low altitudes; ±20 ft at 100,000 ft Altitude Accuracy
±0.3 knots at low speeds; ±2 knots at high speeds Airspeed Accuracy
0 to 6,000 ft/min Rate of Climb Range
| Attribute | Value |
|---|---|
| Altitude Range | -1,000 ft to 100,000 ft |
| Airspeed Range | 0 to 1,100 knots (CAS) |
| Altitude Accuracy | ±2 ft at low altitudes; ±20 ft at 100,000 ft |
| Airspeed Accuracy | ±0.3 knots at low speeds; ±2 knots at high speeds |
| Rate of Climb Range | 0 to 6,000 ft/min |
| Number of Output Ports | 2 (Static and Pitot) |
| Power Requirements | 90–265 VAC, 47–440 Hz, or 18–36 VDC |
| Interface/Communication | RS-232 serial interface for remote control and operation |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Weight | Approximately 15 lbs (6.8 kg) |
The Laversab 6300 avionics test equipment is an Automated Tester is designed to connect directly to an aircraft?s Pitot and Static system. Using the Remote unit a user can operate the tester from the cockpit and use it to test the entire pitot and static system of the aircraft
