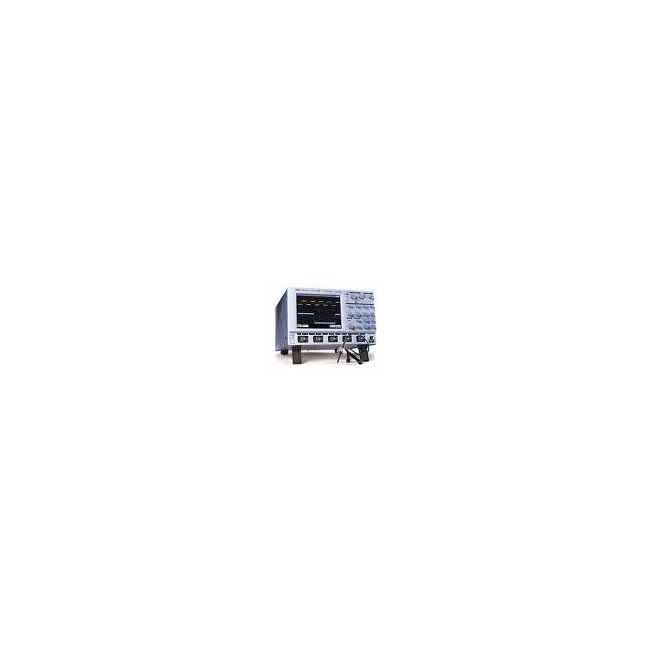

LeCroy 6100A
1 GHz Bandwidth
5 GS/s (single channel), 2.5 GS/s (dual channel) Sample Rate
2 Number of Channels
Up to 2 Mpts/ch Memory Depth
8 bits Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Sample Rate | 5 GS/s (single channel), 2.5 GS/s (dual channel) |
| Number of Channels | 2 |
| Memory Depth | Up to 2 Mpts/ch |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 1 V/div |
| Timebase Range | 200 ps/div to 1000 s/div |
| Input Impedance | 50 Ω or 1 MΩ |
| Display | 10.4-inch color LCD touchscreen |
| Trigger Types | Edge, Width, Glitch, Pattern, TV, Serial (I2C, SPI, UART, CAN, LIN) |
LeCroy 6100A Options:
- 6100A - WR6-VL - 24 Mpts max., when interleaved, 12 Mpts/Ch (for use with 4 Ch WaveRunner 6000A)
- 6100A - WR6-VL2 - 24 Mpts max., 2 Ch 12 Mpts/Ch Memory Option
- 6100A - WR6-L - 16 Mpts max., when interleaved, 8 Mpts/Ch (for use with 4 Ch WaveRunner 6000A)
- 6100A - WR6-L2 - 16 Mpts max., 2 Ch 8 Mpts/Ch Memory Option
- 6100A - WR6-DDM2 - Disk Drive Measurement Software Package
- 6100A - WR6-DFP2 - Digital Filter Software Package
- 6100A - WR6-JTA2 - Jitter and Timing Analysis Software Package
- 6100A - WR6-PMA2 - PowerMeasure Analysis Software Package
- 6100A - WR6-EMC - EMC Pulse Parameter Software Package
- 6100A - WR6-SDMT - Serial Data Mask Software Package
- 6100A - WR6-XWAV - Intermediate Math Software Package
- 6100A - WR6-XMATH - Advanced Math Software Package
- 6100A - WR6-XDEV - Advanced Customization Software Package
- 6100A - WR6-XVAP - Value Analysis Software Package (Includes XWAV and JTA2)
- 6100A - WR6-XMAP - Master Analysis Software Package (Includes JTA2, XMATH and XDEV)
- 6100A - WR6-XWEB - Processing Web Editor Software Package for Functions and Parameters
- 6100A - MS-32 - 32 Digital Channel Oscilloscope Mixed Signal Option
- 6100A - CANbus TDM - CANbus TDM Trigger, Decode and Measure/Graph Testing Option
- 6100A - CANbus TD - CANbus TD Trigger and Decode Testing Option
- 6100A - WR6-GPIB - IEEE-488 GPIB Interface Upgrade
- 6100A - WR6A-GP - Graphics Printer
- 6100A - WR6-RHD - Removable Hard Drive
- 6100A - WR6-CDRW - CD-RW Upgrade
- 6100A - WR6A-RK-GP - Graphic Printer Retrofit
- 6100A - WR6-FLPY - USB Floppy Drive
- 6100A - WR6-HARD - Hard Transit Case
- 6100A - WR6-SOFT - Soft Carrying Case
- 6100A - WR6-RACK - Rackmount, 6U High
- 6100A - WR6-POUCH - Accessory Pouch
- 6100A - WR6-KBD - Mini Keyboard, USB
- 6100A - MEM-USB - USB Flash Memory
| Model | 6100A |
|---|
The LeCroy 6100A is a compact modular test instrument designed for basic signal capture, supporting pulse and waveform generation with limited channels ideal for routine bench diagnostics.
It efficiently handles logic capture and waveform tasks, making it suitable for standard electronic testing and maintenance operations.
Testwall can supply the used LeCroy 6100A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the LeCroy 6100A.
