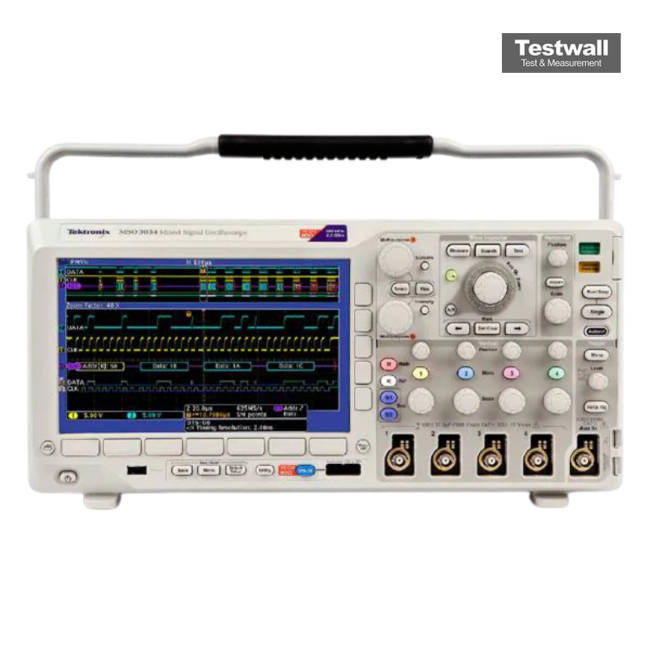

Tektronix MSO3034
| Attribute | Value |
|---|---|
| Bandwidth | 300 MHz |
| Analog Channels | 4 |
| Digital Channels | 16 |
| Sample Rate | 2.5 GS/s |
| Record Length | 5,000,000 points |
| Vertical Resolution | 8 bits |
| Waveform Capture Rate | Up to 50,000 waveforms/second |
| Display | 10.4 inch (264 mm) WVGA color display |
| Trigger Types | Edge, Glitch, Width, Runt, Logic, Setup/Hold, Rise/Fall Time, Serial Packet |
| Connectivity | USB Host and Device, Ethernet (LAN), CompactFlash |
Tektronix MSO3034 Options:
- MSO3034 - DPO3AUDIO - Audio Serial Triggering and Analysis Module. Enables triggering on packet-level information on I2S, Left Justified, Right Justified, TDM, and custom audio buses, as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.
- MSO3034 - DPO3AUTO - Automotive Serial Triggering and Analysis Module. Enables triggering on packet-level information on CAN bus and LIN bus as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.
- MSO3034 - DPO3COMP - Computer Serial Triggering and Analysis Module. Enables triggering on packet-level information on RS-232/422/485/UART buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.
- MSO3034 - DPO3EMBD - Embedded Serial Triggering and Analysis Module. Enables triggering on packet-level information on I2C and SPI buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.
- MSO3034 - DPO3PWR - Power Analysis Module. Enables quick and accurate analysis of power quality, switching loss, harmonics, safe operating area (SOA), modulation, ripple, and slew rate (dI/dt, dV/dt).
- MSO3034 - DPO3VID - HDTV and Custom (nonstandard) Video Triggering Module.
- MSO3034 - Opt. A0 - Power plug: North America
- MSO3034 - Opt. A1 - Power plug: Universal Euro
- MSO3034 - Opt. A2 - Power plug: United Kingdom
- MSO3034 - Opt. A3 - Power plug: Australia
- MSO3034 - Opt. A5 - Power plug: Switzerland
- MSO3034 - Opt. A6 - Power plug: Japan
- MSO3034 - Opt. A10 - Power plug: China
- MSO3034 - Opt. A11 - Power plug: India
- MSO3034 - Opt. A99 - No power cord
- MSO3034 - Opt. L0 - English manual
- MSO3034 - Opt. L1 - French manual
- MSO3034 - Opt. L2 - Italian manual
- MSO3034 - Opt. L3 - German manual
- MSO3034 - Opt. L4 - Spanish manual
- MSO3034 - Opt. L5 - Japanese manual
- MSO3034 - Opt. L6 - Portuguese manual
- MSO3034 - Opt. L7 - Simplified Chinese manual
- MSO3034 - Opt. L8 - Traditional Chinese manual
- MSO3034 - Opt. L9 - Korean manual
- MSO3034 - Opt. L10 - Russian manual
- MSO3034 - Opt. L99 - No manual
- MSO3034 - Opt. C3 - Calibration Service 3 years
- MSO3034 - Opt. C5 - Calibration Service 5 years
- MSO3034 - Opt. CA1 - Provides a single calibration event, or coverage for the designated calibration interval, whichever comes first
- MSO3034 - Opt. D1 - Calibration Data Report
- MSO3034 - Opt. D3 - Calibration Data Report 3 years (with Opt. C3)
- MSO3034 - Opt. D5 - Calibration Data Report 5 years (with Opt. C5)
- MSO3034 - Opt. R5 - Repair Service 5 years (including warranty)
| Model | MSO3034 |
|---|
The Tektronix MSO3034 Mixed-Signal Oscilloscope delivers 300 MHz bandwidth, 4 analog and 16 digital channels, 2.5 GS/s sampling, and a deep 5 Mpoint record length. It includes MagniVu™ high-speed acquisition for 121.2 ps timing resolution, Wave Inspector® controls for easy navigation, and advanced triggers with FFT and 29 automated measurements. Connectivity includes USB, Ethernet, and video out ports.
Ideal for debugging complex designs, it supports automated serial/parallel decoding, user-defined digital thresholds, and optional application modules like power and HDTV analysis.
Testwall can supply the used Tektronix MSO3034, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO3034.
