Teledyne LeCroy

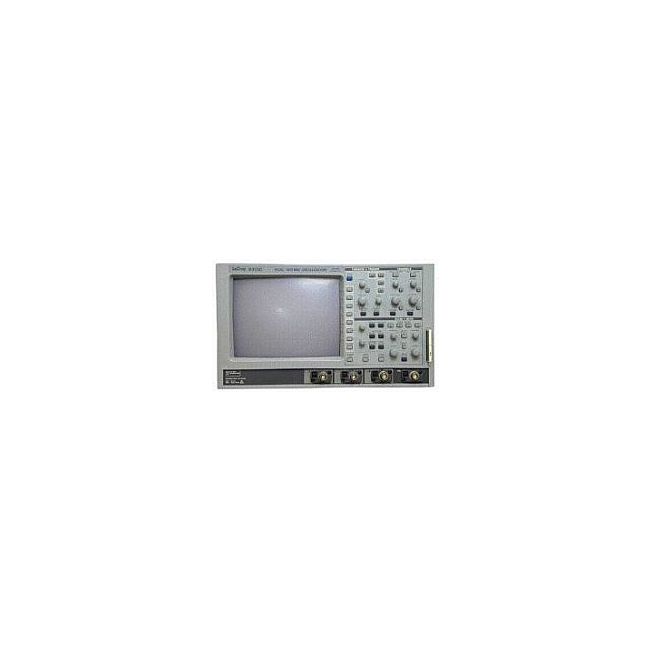

LeCroy 9310A
400 MHz Bandwidth
100 MS/s per channel Sample Rate
2 Number of Channels
50,000 points per channel Record Length
8 bits Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 400 MHz |
| Sample Rate | 100 MS/s per channel |
| Number of Channels | 2 |
| Record Length | 50,000 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 1 ns/div to 200 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 8.4-inch color CRT display |
| Trigger Modes | Edge, Pattern, State, Delay by Time, Delay by Events |
LeCroy 9310A Options:
- 9310A - WP01 - Math Package WP01: Envelope and ERES modes (up to 10^6 averages, Low-Pass digital filter up to 11 bits vertical resolution)
- 9310A - WP02 - Math Package WP02: FFT Spectral Analysis with four windowing functions and FFT averaging
- 9310AM - 9310AM - 200k point acquisition memory per channel version
- 9310AL - 9310AL - 1M point acquisition memory per channel version
- 9310A - PCMCIA - PCMCIA portable hard drive option for waveform and setup storage
- 9310A - Memory Card - Memory Card option for waveform and setup storage
- 9310A - Floppy Disk - DOS compatible floppy disk option for waveform and setup storage (includes Centronics parallel interface)
- 9310A - Internal Printer - Optional internal high resolution graphics printer (includes Centronics parallel interface)
| Model | 9310A |
|---|
The LeCroy 9310A is a mid-range, multi-channel Digital Storage Oscilloscope designed for extended-duration waveform capture. It features a segmented record, flexible triggering, and zoom traces, with a timing measurement accuracy of ±0.002% and adjustable hold-off by time or event.
Engineered with the 9314 series architecture, it ensures precision and performance for advanced signal diagnostics and debug operations across various applications.
Testwall can supply the used LeCroy 9310A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the LeCroy 9310A.
