Tektronix MSO44
| Attribute | Value |
|---|---|
| Number of Analog Channels | 4 |
| Bandwidth | 200 MHz (upgradeable to 1.5 GHz) |
| Sample Rate | 6.25 GS/s |
| Record Length | 31.25 M points standard |
| Digital Channels | 32 digital channels (with TLP058 logic probe) |
| Display | 13.3-inch HD (1920 x 1080) capacitive touchscreen |
| Vertical Resolution | 12-bit ADC (16-bit with Hi-Res mode) |
| Waveform Capture Rate | 500,000 waveforms per second |
| Serial Bus Triggering and Analysis | I2C, SPI, RS-232/422/485/UART, USB 2.0, CAN, LIN, FlexRay, MIL-STD-1553, SENT, I3C, and more (optional) |
| Connectivity | USB 3.0, USB 2.0, LAN (RJ-45), HDMI, rear-panel USB host ports |
Available configurations
| Model | Bandwidth | Channels |
| MSO44 4-BW-200 | 200 MHz | 4 |
| MSO44 4-BW-350 | 350 MHz | 4 |
| MSO44 4-BW-500 | 500 MHz | 4 |
| MSO44 4-BW-1000 | 1 GHz | 4 |
| MSO44 4-BW-1500 | 1.5 GHz | 4 |

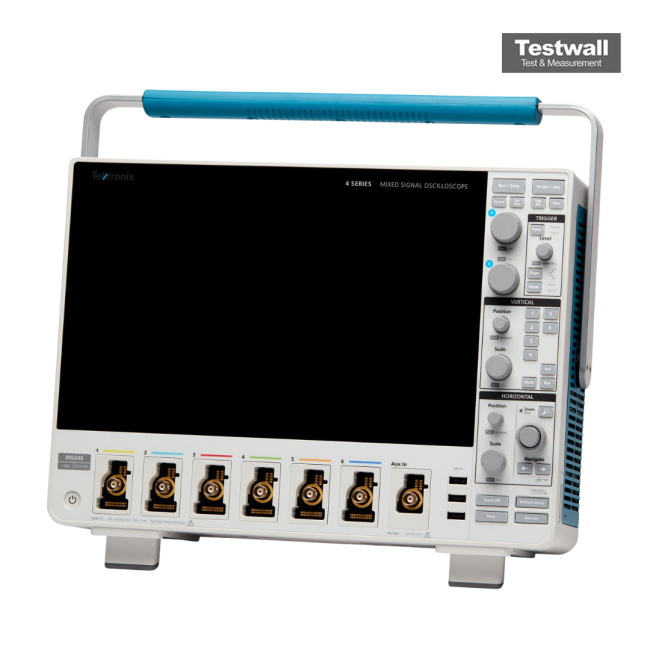

The Tektronix MSO44 4-BW-500 is a high-performance 4-channel mixed signal oscilloscope featuring 500MHz bandwidth, 6.25GS/s sampling rate, and 12-bit ADC resolution, expandable to 16-bit in high-res mode. It includes 31.25Mpoint memory (upgradable to 62.5M), 13.3" HD touchscreen, 36 auto measurements, and a 6-in-1 instrument integration, all designed for enhanced visibility in embedded systems, power electronics, and automotive diagnostics.
It supports 4 FlexChannels®, which can be configured as analog or digital inputs, or for simultaneous analog/spectrum analysis. With HDMI, LAN, and USB interfaces, remote control and web-based access are streamlined.
Testwall can supply the used Tektronix MSO44, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO44.
