LeCroy 9314C
| Attribute | Value |
|---|---|
| Bandwidth | 400 MHz |
| Number of Channels | 4 |
| Sample Rate | 100 MS/s per channel (400 MS/s single channel) |
| Record Length | 50,000 points per channel |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 2 mV/div to 10 V/div |
| Timebase Range | 500 ps/div to 2000 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 10.4-inch color LCD |
| Trigger Types | Edge, Pattern, State, Slew Rate, HDTV, and more |
| Model | 9314C |
|---|

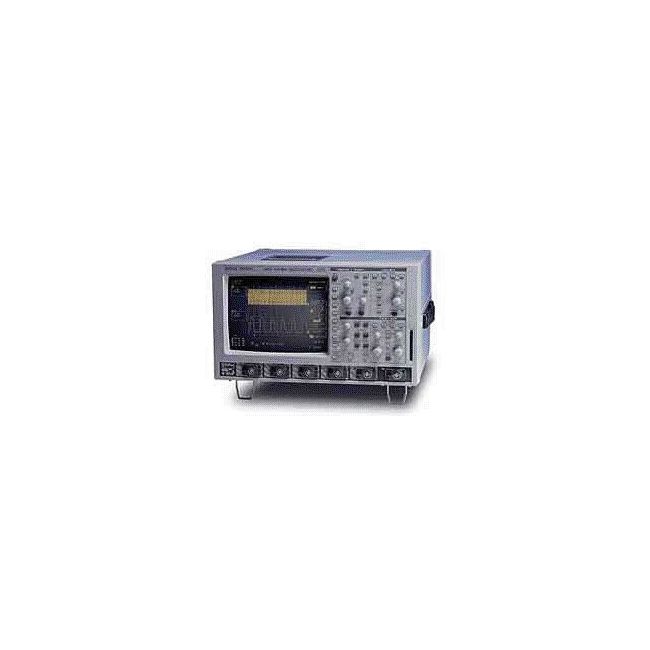

The LeCroy 9314C is a high-performance four-channel oscilloscope from the 9300C series, engineered for superior signal capture and advanced triggering. It supports up to 2000 segments in CL variants, enhancing glitch and event capture accuracy. With 10 ps interpolator resolution and versatile coupling modes, it delivers exceptional vertical resolution and signal clarity.
Ideal for analyzing complex waveforms, the LeCroy 9314C offers advanced trigger types including Glitch, TV, Dropout, State-qualified, and Pattern triggers.
Testwall can supply the used LeCroy 9314C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the LeCroy 9314C.
