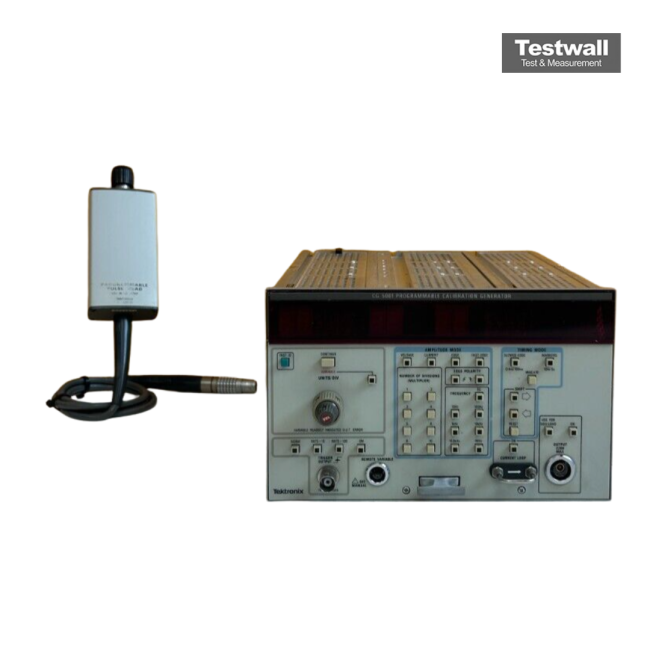

Tektronix CG5001
Programmable Calibration Generator
1 Hz to 50 MHz Output Frequency Range
10 mV to 10 V peak-to-peak (into 50Ω) Output Amplitude
Sine, Square, Triangle, Ramp, Pulse, Noise, DC Waveform Types
6 digits Frequency Resolution
50Ω Output Impedance
| Attribute | Value |
|---|---|
| Output Frequency Range | 1 Hz to 50 MHz |
| Output Amplitude | 10 mV to 10 V peak-to-peak (into 50Ω) |
| Waveform Types | Sine, Square, Triangle, Ramp, Pulse, Noise, DC |
| Frequency Resolution | 6 digits |
| Output Impedance | 50Ω |
| Modulation Types | AM, FM, PM, FSK, PWM, Sweep, Burst |
| DC Offset Range | ±5 V (into 50Ω) |
| Sine Wave Harmonic Distortion | -55 dBc (1 kHz, 1 Vpp) |
| Display | 3.5-inch color LCD display |
| Connectivity/Interface | USB Host, USB Device, LAN (LXI) |
Tektronix CG5001 Options:
- CG5011 - Opt. 01 - Adds High Stability Time Base
- CG5011 - Opt. 02 - Deletes Pulse Head
| Model | CG5001 |
|---|
The Tektronix CG5001 is a high-precision calibration generator designed for television systems, supporting both NTSC and PAL formats. It features multiformat output, color bar and sync signal generation, and is rack-mountable for efficient lab and field integration.
Ideal for assessing and calibrating video performance across broadcast chains, it ensures signal consistency and reliable diagnostics.
Testwall can supply the used Tektronix CG5001, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix CG5001.
