Teledyne LeCroy

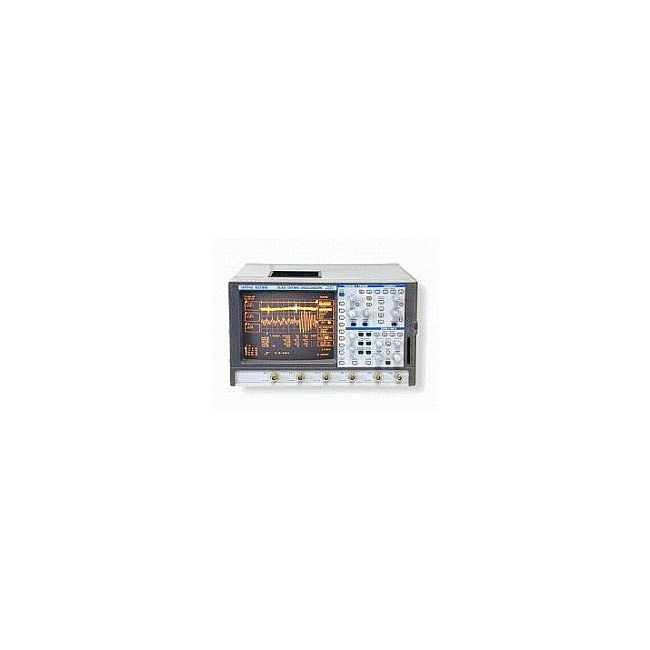

LeCroy 9314L
400 MHz Bandwidth
4 Number of Channels
100 MS/s per channel Sample Rate
50,000 samples per channel Memory Depth
8-bit Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 400 MHz |
| Number of Channels | 4 |
| Sample Rate | 100 MS/s per channel |
| Memory Depth | 50,000 samples per channel |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 1 ns/div to 1000 s/div |
| Input Impedance | 1 MΩ / 50 Ω |
| Display | 8.4-inch color LCD |
| Trigger Types | Edge, Pattern, State, TV, Glitch, Width, Slew Rate |
| Model | 9314L |
|---|
The LeCroy 9314L is a high-segment-depth digital oscilloscope offering 300?MHz bandwidth and 100?MS/s real-time sampling, with interpolated resolution down to 10?ps for precise waveform analysis.
Designed for in-depth signal diagnostics, it supports segmented acquisition for multi-thousand-frame capture, ideal for detecting rare analog anomalies efficiently.
Testwall can supply the used LeCroy 9314L, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the LeCroy 9314L.
