Teledyne LeCroy

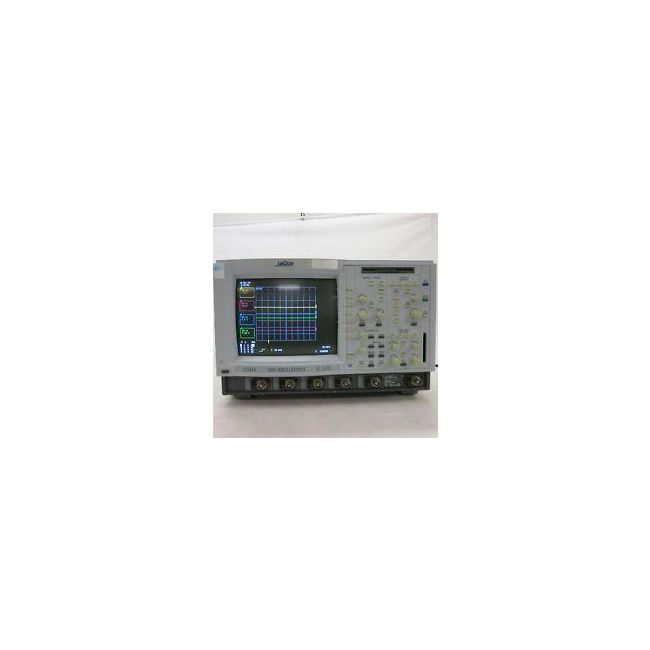

LeCroy 9314M
400 MHz Bandwidth
4 Number of Channels
100 MS/s per channel Sample Rate
50,000 points per channel Record Length
8 bits Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 400 MHz |
| Number of Channels | 4 |
| Sample Rate | 100 MS/s per channel |
| Record Length | 50,000 points per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 1 ns/div to 1000 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 10.4-inch color LCD |
| Trigger Types | Edge, Width, Pattern, TV, Glitch, Interval, Slew Rate |
| Model | 9314M |
|---|
The LeCroy 9314M is a memory-enhanced digital oscilloscope optimized for long-duration waveform storage, maintaining the high analog and triggering performance of the 9314L model.
Its archive-grade buffer and large segmented memory are designed for engineers needing extended acquisition windows before data offload.
Testwall can supply the used LeCroy 9314M, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the LeCroy 9314M.
