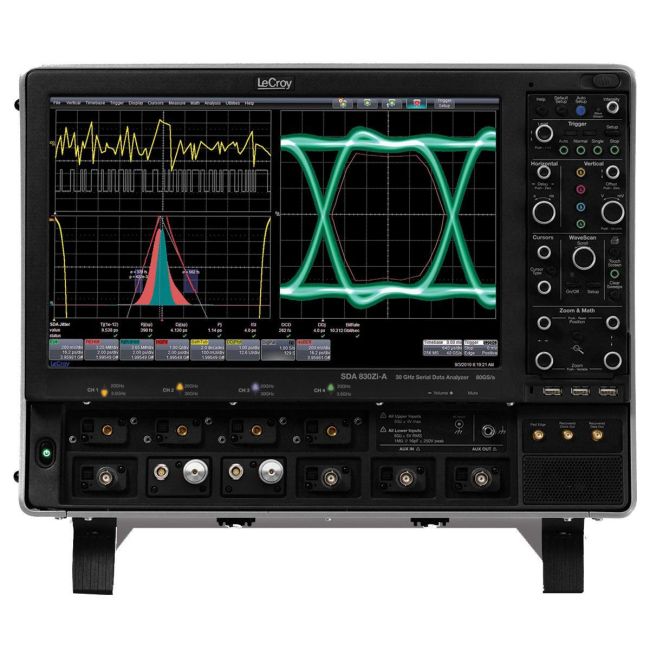

Teledyne LeCroy SDA-820ZI-B
| Attribute | Value |
|---|---|
| Bandwidth | 20 GHz |
| Sample Rate | 80 GS/s |
| Number of Channels | 4 Analog Channels |
| Memory Depth | 256 Mpts/Ch (standard), up to 2 Gpts/Ch (optional) |
| Vertical Resolution | 8-bit (up to 11-bit with enhanced resolution) |
| Rise Time | 17.5 ps |
| Input Impedance | 50 Ω |
| Display | 15.3-inch color LCD touchscreen |
| Serial Data Analysis | Integrated Serial Data Analyzer with SDAIII CompleteLinQ software |
| Operating System | Windows 7 Embedded (64-bit) |
| Model | SDA-820ZI-B |
|---|
The Teledyne LeCroy SDA-820Zi-B is engineered for enterprise-grade serial testing, offering a 20 GHz analog bandwidth and up to 50 GS/s sample rate for exceptional signal fidelity. It delivers advanced tools like BER contour plots, waveform histograms, and protocol compliance kits.
Ideal for high-speed serial data validation, the SDA-820Zi-B provides timing, error, and compliance analysis with optional calibrated optical modules for expanded applications.
Testwall can supply the used Teledyne LeCroy SDA-820Zi-B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy SDA-820Zi-B.
