LeCroy 9354AL
500 MHz Bandwidth
1 GS/s Sample Rate
4 Number of Channels
2 Mpts per channel Memory Depth
8-bit Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Sample Rate | 1 GS/s |
| Number of Channels | 4 |
| Memory Depth | 2 Mpts per channel |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 2 mV/div to 1 V/div |
| Timebase Range | 500 ps/div to 1000 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 10.4-inch color LCD |
| Trigger Types | Edge, Width, Pattern, TV, Slew Rate, Qualified, UART, SPI, I2C |
LeCroy 9354AL Options:
- 9354AL - 930X-64 - N/A
- 9354AL - 9350-SM - NA
- 9354AL - 93XX-FDGP - Graphic Printer & Floppy Disk
- 9354AL - 93XX-MC01/04 - Memory Card Reader
- 9354AL - 93XX-PRML - Analysis Package
- 9354AL - WP02 - FFT Processing
- 9354AL - WP03 - Parameter Analysis Package
- 9354AL - WPO1 - Advanced Math Option
| Model | 9354AL |
|---|

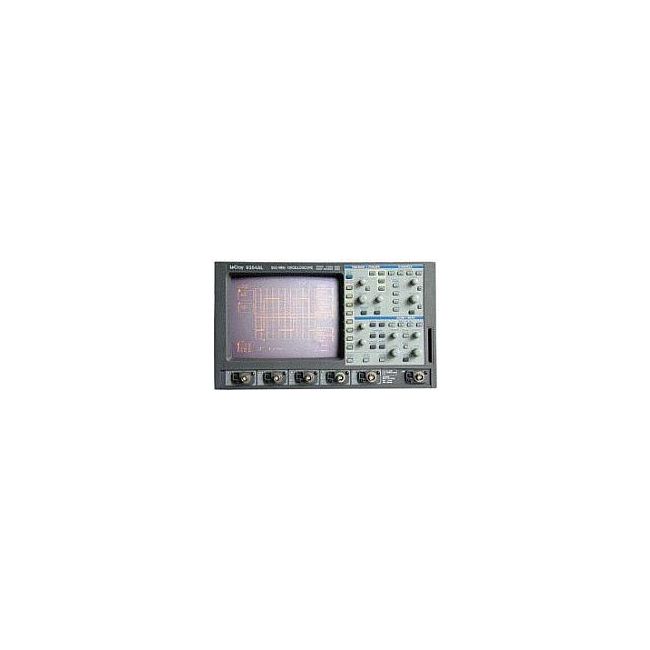

The LeCroy 9354AL is a four-channel digital oscilloscope with 500 MHz bandwidth and 2 GS/s interleaved or 1 GS/s per channel sampling, ideal for capturing high-speed signals with precision.
It features up to 8 M points memory per channel, segmented capture for event recording, and advanced functions like SmartTrigger™, PASS/FAIL diagnostics, FFT spectra, and histogramming.
Testwall can supply the used LeCroy 9354AL, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the LeCroy 9354AL.
