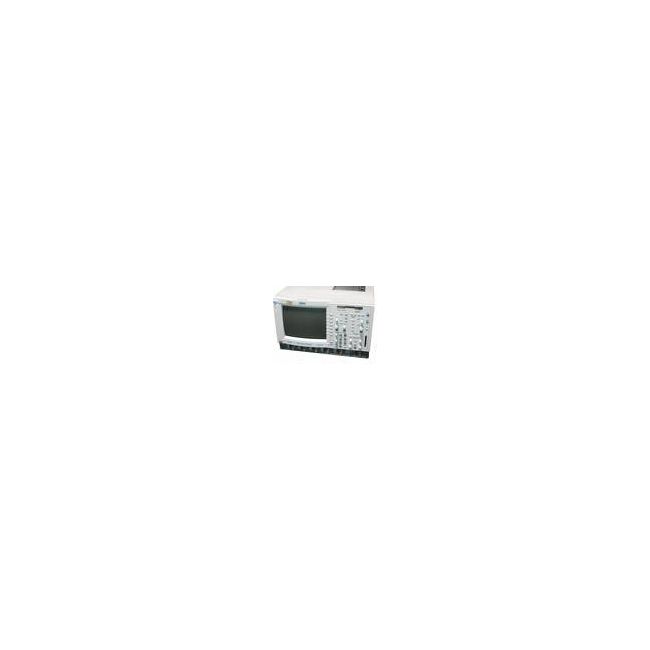

LeCroy LC534L
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Number of Channels | 4 |
| Sample Rate | 4 GS/s |
| Memory Depth | 4 Mpts/ch (up to 8 Mpts interleaved) |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 2 mV/div to 1 V/div |
| Timebase Range | 200 ps/div to 1000 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 10.4-inch color LCD touchscreen |
| Connectivity/Interface | GPIB, RS-232, Ethernet, Floppy Drive |
| Model | LC534L |
|---|
The Lecroy LC534L is a mid-tier oscilloscope delivering 1 GHz bandwidth with peak 2 GS/s sampling per channel, expandable up to 8 GS/s with interleaving. Its SmartMemory auto-management supports long acquisition lengths with exceptional data fidelity, while SmartTrigger™ and segmented record enhance triggering precision and data segmentation.
Designed for advanced signal analysis, the LC534L includes extensive math functions and flexible acquisition capabilities ideal for engineers needing reliable waveform capture and processing.
Testwall can supply the used Lecroy LC534L, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Lecroy LC534L.
