Teledyne LeCroy

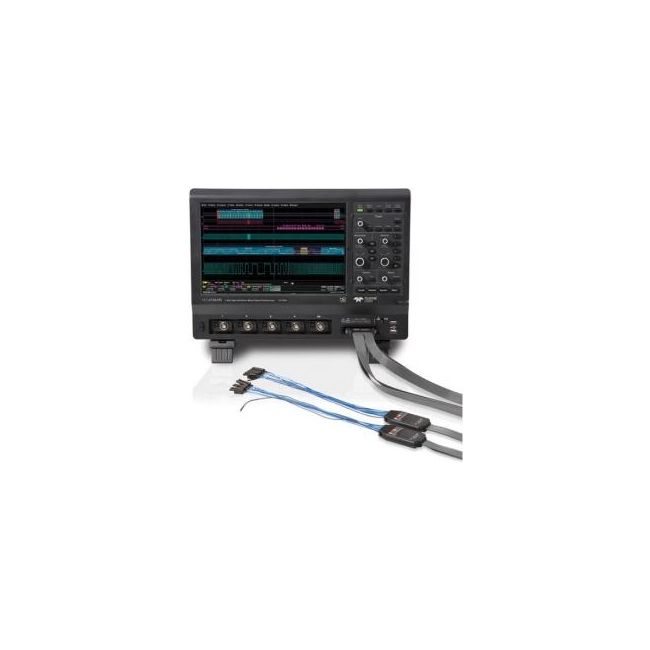

Teladyne LeCroy HDO4024 MS
Mixed Signal Oscilloscope, 200 MHz 2.5 GS/s, 4+16 Ch.
200 MHz Bandwidth
4 Number of Analog Channels
16 Number of Digital Channels
1 GS/s (each channel), 2.5 GS/s (interleaved) Sample Rate
12.5 Mpts/ch (standard), 25 Mpts (interleaved) Memory Depth
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Number of Analog Channels | 4 |
| Number of Digital Channels | 16 |
| Sample Rate | 1 GS/s (each channel), 2.5 GS/s (interleaved) |
| Memory Depth | 12.5 Mpts/ch (standard), 25 Mpts (interleaved) |
| Vertical Resolution | 12-bit ADC |
| Display | 12.1-inch color LCD touchscreen, 1280 x 800 resolution |
| Input Impedance | 1 MΩ or 50 Ω |
| Connectivity | USB 2.0, USB 3.0, Ethernet (LAN), HDMI |
| Trigger Types | Edge, Width, Pattern, Qualified, Window, Dropout, Runt, Slew Rate, Serial (I2C, SPI, UART, CAN, LIN) |
Teladyne LeCroy HDO4024 MS Options:
- HDO4024 MS - HDO4K-L - 25 Mpts/ch (50 Mpts interleaved) memory
- HDO4024 MS - HDO4K-RHD - Removable Hard Drive Package (includes removable hard drive kit and two hard drives)
- HDO4024 MS - HDO4K-RHD-02 - Additional Removable Hard Drive
- HDO4024 MS - USB2-GPIB - External GPIB Accessory
- HDO4024 MS - HDO4K-SOFTCASE - Soft Carrying Case
- HDO4024 MS - HDO4K-RACK - Rack Mount Accessory
- HDO4024 MS - HDO4K-POUCH - Accessory Pouch
- HDO4024 MS - HDO4K-FP-GERMAN - German Front Panel Overlay
- HDO4024 MS - HDO4K-FP-FRENCH - French Front Panel Overlay
- HDO4024 MS - HDO4K-FP-ITALIAN - Italian Front Panel Overlay
- HDO4024 MS - HDO4K-FP-SPANISH - Spanish Front Panel Overlay
- HDO4024 MS - HDO4K-FP-JAPANESE - Japanese Front Panel Overlay
- HDO4024 MS - HDO4K-FP-KOREAN - Korean Front Panel Overlay
- HDO4024 MS - HDO4K-FP-CHNES-TR - Chinese (Traditional) Front Panel Overlay
- HDO4024 MS - HDO4K-FP-CHNES-SI - Chinese (Simplified) Front Panel Overlay
- HDO4024 MS - HDO4K-FP-RUSSIAN - Russian Front Panel Overlay
- HDO4024 MS - HDO4K-ET-PMT - Electrical Telecom Mask Test Package
- HDO4024 MS - HDO4K-SPECTRUM - Spectrum Analysis Option
- HDO4024 MS - HDO4K-PWR - Power Analysis Option
- HDO4024 MS - HDO4K-ARINC429bus DSymbolic - ARINC 429 Symbolic Decode Option
- HDO4024 MS - HDO4K-Audiobus TD - Audiobus Trigger and Decode Option for I2S, LJ, RJ, and TDM
- HDO4024 MS - HDO4K-AUTO - CAN, LIN and FlexRay Trigger and Decode Option
- HDO4024 MS - HDO4K-CAN FDbus TD - CAN FD Trigger and Decode Option
- HDO4024 MS - HDO4K-CANbus TD - CAN Trigger and Decode Option
- HDO4024 MS - HDO4K-DPHYbus D - D-PHY Decode Option
- HDO4024 MS - HDO4K-DigRF3Gbus D - DigRF 3G Decode Option
- HDO4024 MS - HDO4K-DigRFv4bus D - DigRF v4 Decode Option
- HDO4024 MS - HDO4K-ENETbus D - ENET Decode Option
- HDO4024 MS - HDO4K-FlexRaybus TD - FlexRay Trigger and Decode Option
- HDO4024 MS - HDO4K-EMB - I2C, SPI and UART Trigger and Decode Option
- HDO4024 MS - HDO4K-I2Cbus TD - I2C Bus Trigger and Decode Option
- HDO4024 MS - HDO4K-LINbus TD - LIN Trigger and Decode Option
- HDO4024 MS - HDO4K-Manchesterbus D - Manchester Decode Option
- HDO4024 MS - HDO4K-1553 TD - MIL-STD-1553 Trigger and Decode Option
- HDO4024 MS - HDO4K-NRZbus D - NRZ Decode Option
- HDO4024 MS - HDO4K-SENTbus D - SENT Decode Option
- HDO4024 MS - HDO4K-SPIbus TD - SPI Bus Trigger and Decode Option
- HDO4024 MS - HDO4K-SpaceWirebus D - SpaceWire Decode Option
- HDO4024 MS - HDO4K-UART-RS232bus TD - UART and RS-232 Trigger and Decode Option
- HDO4024 MS - HDO4K-USB2bus TD - USB 2.0 Trigger and Decode Option
- HDO4024 MS - HDO4K-USB2-HSICbus D - USB2-HSIC Decode Option
| Model | HDO4024 MS |
|---|
The Teledyne LeCroy HDO4024-MS combines four analog channels with sixteen digital inputs, delivering precise mixed-signal analysis with 200 MHz analog bandwidth. It offers HD4096 12-bit resolution (optionally enhanced to 15-bit) and up to 25 Mpts memory per channel, ensuring detailed signal capture and analysis.
Ideal for embedded system validation, it supports synchronized analog-digital acquisition, mixed-signal cross-triggering, advanced debug tools, protocol decoding, WaveScan, History Mode, LabNotebook, and spectrum & power analysis.
Testwall can supply the used Teledyne LeCroy HDO4024-MS, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy HDO4024-MS.
