LeCroy LC584AXL
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Channels | 4 |
| Maximum Sample Rate | 8 GS/s (single channel), 4 GS/s (two channels), 2 GS/s (four channels) |
| Memory Depth | Up to 8 Mpts/ch (with optional memory upgrade) |
| Vertical Resolution | 8-bit (up to 11-bit with enhanced resolution) |
| Input Impedance | 50 Ω or 1 MΩ (switchable) |
| Timebase Range | 200 ps/div to 1000 s/div |
| Vertical Sensitivity | 2 mV/div to 10 V/div (1 MΩ); 2 mV/div to 1 V/div (50 Ω) |
| Display | 10.4-inch color LCD touchscreen |
| Trigger Types | Edge, Width, Glitch, Interval, Dropout, Slew Rate, Pattern, TV, Serial Pattern |
LeCroy LC584AXL Options:
- LC584AXL - DA01-110 - PC Card External Desktop Adapt
- LC584AXL - HD01 - PC Card Slot for Hard Drives and ATA Flash Cards
- LC584AXL - HD02 - PC Card Hard Disk (520 Mbytes)
- LC584AXL - MC01/04 - Memory Card Reader and 512k SRAM Card
| Model | LC584AXL |
|---|

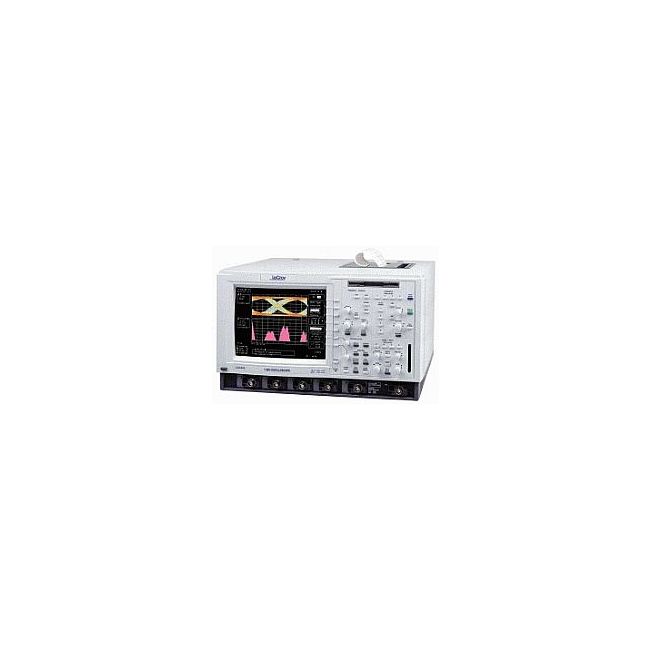

The LeCroy LC584AXL is a 4-channel digital storage oscilloscope with a 1 GHz bandwidth and 8 GSa/s sampling on a single channel or 2 GSa/s per channel simultaneously. It features a 64 MB RAM, 16 Mpt record length, vivid color CRT display, and advanced trigger modes including pattern, interval, and slewrate detection. Interface support includes GPIB, RS‑232, VGA, and I²C for maximum flexibility in research environments.
Ideal for waveform troubleshooting and long-term signal capture, the LeCroy LC584AXL ensures high-resolution diagnostics with intuitive autosetup and multi-mode display options.
Testwall can supply the used LeCroy LC584AXL, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the LeCroy LC584AXL.
