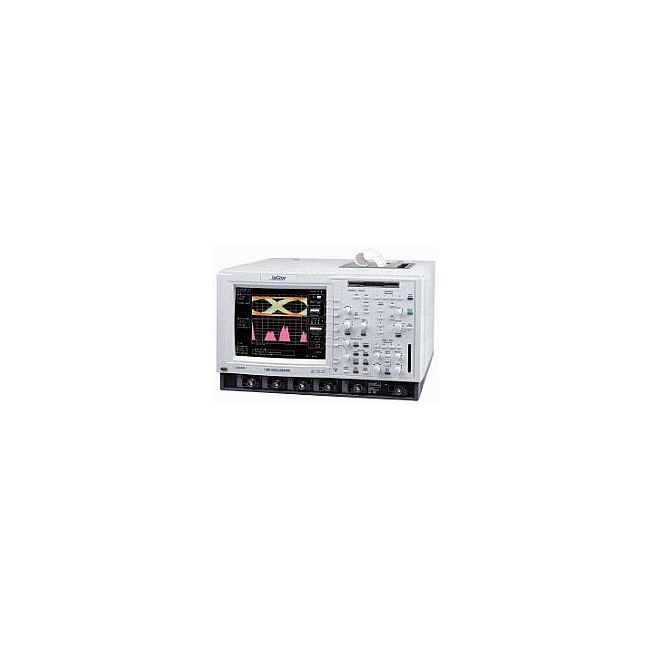

LeCroy LC684DM
1 GHz Bandwidth
4 Channels
4 GS/s (single channel), 2 GS/s (all channels) Sample Rate
4 Mpts/channel (up to 32 Mpts with optional memory upgrade) Memory Depth
8-bit (up to 11-bit with enhanced resolution) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Channels | 4 |
| Sample Rate | 4 GS/s (single channel), 2 GS/s (all channels) |
| Memory Depth | 4 Mpts/channel (up to 32 Mpts with optional memory upgrade) |
| Vertical Resolution | 8-bit (up to 11-bit with enhanced resolution) |
| Vertical Sensitivity | 2 mV/div to 1 V/div |
| Time Base Range | 200 ps/div to 1000 s/div |
| Display | 10.4-inch color LCD touchscreen |
| Input Impedance | 1 MΩ or 50 Ω selectable |
| Connectivity/Interfaces | GPIB, RS-232, Ethernet, Floppy Drive, Printer Port |
| Model | LC684DM |
|---|
The LeCroy LC684DM is a high-performance 4-channel oscilloscope offering 1.5 GHz bandwidth and up to 8 GSa/s on a single channel, ensuring precise waveform capture. It includes 2 Mpt memory per channel, signal math, FFT, and extensive analysis tools for advanced testing needs.
Perfect for jitter analysis, disk-drive evaluations, and signal integrity tasks, it features a user-friendly color display and supports optional interfaces like GPIB and VGA.
Testwall can supply the used LeCroy LC684DM, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the LeCroy LC684DM.
