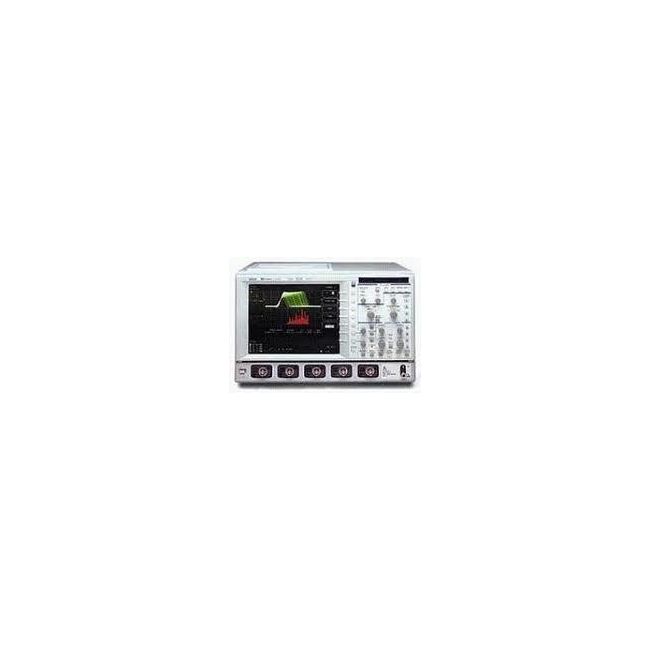

LeCroy LT374 500 MHz 4 Channel 4 GS/s Oscilloscope.
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 4 |
| Sample Rate | 4 GS/s |
| Record Length | Up to 2 Mpts/ch |
| Vertical Resolution | 8-bit |
| Timebase Range | 200 ps/div to 1000 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Sensitivity | 2 mV/div to 10 V/div |
| Display | 10.4-inch color LCD touchscreen |
| Trigger Types | Edge, Width, Pattern, TV, Serial, and more |
LeCroy LT374 500 MHz 4 Channel 4 GS/s Oscilloscope. Options:
- LT374 - PP006 - Model PP006 Probe, 10:1, 10 MΩ with auto-detect (one per channel)
- LT374 - Ethernet - Ethernet optional interface (10 Base-T)
- LT374 - PC Card Slot - PC Card Slot (optional), supports memory and hard drive cards
- LT374 - Internal Graphics Printer - Internal Graphics Printer (optional), provides hard copy output in less than 10 seconds
- LT374 - Hard Drive - Hard drive (optional storage)
- LT374 - Memory Card - Memory card (optional storage)
- LT374 - Memory Option M - Memory Option M (500k/2M/8M acquisition points per channel, up to 4,000 segments)
- LT374 - Memory Option L - Memory Option L (500k/2M/8M acquisition points per channel, up to 4,000 segments)
| Model | LT374 |
|---|
The LeCroy LT374 is a WaveRunner‑2 class oscilloscope with 500 MHz analog bandwidth across four channels and a maximum sample rate of 4 GS/s single‑shot (2 GS/s with all channels active). Its high‑memory 'L' configuration offers up to 8 Mpts/channel, enabling detailed signal integrity and timing analysis. The 8.4″ color TFT display, Wavepilot™ automated analysis views, and analog persistence with up to 4,000 acquisition history make it ideal for complex debugging. Connectivity includes GPIB, RS‑232‑C, VGA, Centronics, PC‑Card, and optional Ethernet.
Designed for precision applications, the LT374 supports FFT, histograms, track‑view, jitter tracking, and QuickZoom for rapid inspection, ensuring efficient troubleshooting in demanding electronic environments.
Testwall can supply the used LeCroy LT374 500 MHz 4 Channel 4 GS/s Oscilloscope, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the LeCroy LT374 500 MHz 4 Channel 4 GS/s Oscilloscope.
