Keysight (Agilent) MSO7052B
500 MHz, 2 Analog Channels, 16 Digital Channels Oscilloscope
500 MHz Bandwidth
2 Number of Analog Channels
16 Number of Digital Channels
4 GSa/s Maximum Sample Rate
4 Mpts (standard), up to 8 Mpts (optional) Memory Depth
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Analog Channels | 2 |
| Number of Digital Channels | 16 |
| Maximum Sample Rate | 4 GSa/s |
| Memory Depth | 4 Mpts (standard), up to 8 Mpts (optional) |
| Display | 12.1-inch XGA color display |
| Waveform Update Rate | Up to 100,000 waveforms per second |
| Trigger Types | Edge, Glitch, Pattern, CAN, LIN, I2C, SPI, UART/RS232, and more |
| Vertical Resolution | 8-bit (up to 11-bit with high-resolution mode) |
| Connectivity | USB, LAN (LXI Core 2011), GPIB (optional) |
Keysight (Agilent) MSO7052B Options:
- MSO7052B - 002 - N2873A 500 MHz passive probe with probe ID (optional in place of standard probe)
- MSO7052B - AMS - CAN/LIN automotive triggering and decode (4 and 4+16 channel models only)
- MSO7052B - LSS - I2C/SPI serial decode option (for 4/4+16 channel models only)
- MSO7052B - 232 - RS-232/UART triggering and decode (4 and 4+16 channel models only)
- MSO7052B - SND - I2S Triggering and Decode (4 and 4+16 channel models only)
- MSO7052B - FLX - FlexRay Measurements (4 and 4+16 channel models only)
- MSO7052B - 553 - MIL-STD 1553 Triggering and Decode (4 and 4+16 channel models only)
- MSO7052B - SGM - Segmented memory
- MSO7052B - LMT - Mask limit testing
- MSO7052B - SEC - Secure Environment Mode - Provides compliance with NISPOM Chapter 8 requirements (factory-installed option only for new purchase)
- MSO7052B - A6J - ANSI Z540 compliant calibration
- MSO7052B - ABA - Printed user's guide in English
- MSO7052B - AB2 - Printed user's guide in Simplified Chinese
- MSO7052B - ABJ - Printed user's guide in Japanese
| Model | MSO7052B |
|---|

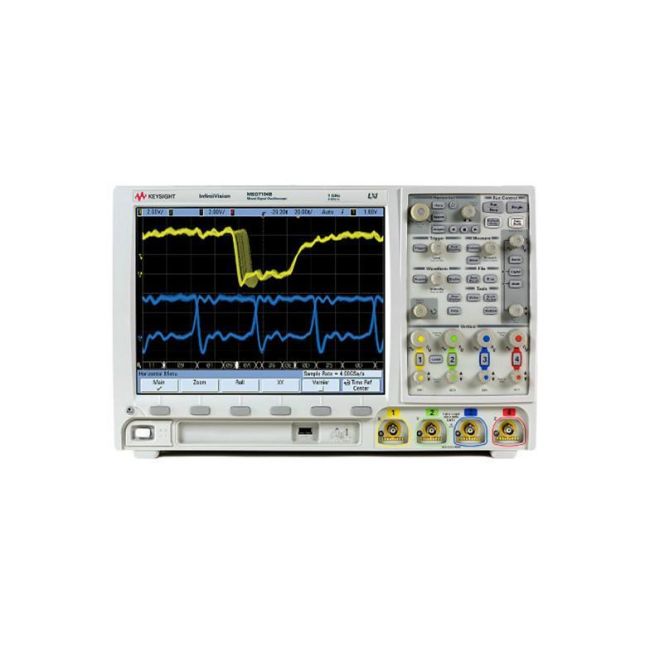

The Keysight (Agilent) MSO7052B Mixed Signal Oscilloscope offers 500 MHz bandwidth, 4 GSa/s sample rate, 2 analog and 16 digital channels, and a standard 8 Mpts deep memory for high-performance signal analysis.
Featuring a 12.1” XGA display, automatic search and navigation, and the fastest 100,000 wfms/sec update rate, it enables visibility of rare events and subtle details, supported by a wide application suite.
Testwall can supply the used Keysight (Agilent) MSO7052B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSO7052B.
