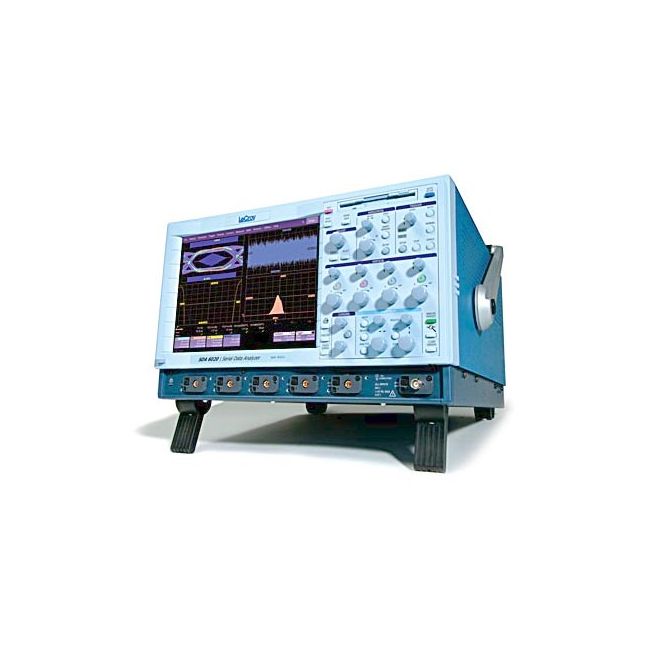

LeCroy SDA 11000
| Attribute | Value |
|---|---|
| Bandwidth | 11 GHz |
| Sample Rate | 40 GS/s |
| Number of Channels | 4 |
| Record Length | up to 256 Mpts/Ch |
| Vertical Resolution | 8 bits |
| Rise Time | 36 ps |
| Input Impedance | 50 Ω |
| Timebase Range | 20 ps/div to 64 s/div |
| Serial Data Analysis | Integrated SDA (Serial Data Analyzer) with jitter and eye diagram analysis |
| Display | 12.1-inch color LCD touchscreen |
| Model | SDA 1100 |
|---|
The LeCroy SDA 11000 is an advanced 11 GHz, 4-channel serial data analyzer designed for real-time jitter and eye-pattern analysis at data rates up to 6 Gb/s. Featuring DBI (Digital Bandwidth Interleaving) for enhanced bandwidth per channel, it offers deep memory (up to 100/50 Mpts) and powerful tools like Q‑Scale and jitter decomposition for precise signal diagnostics.
Ideal for engineers, it supports 40 GS/s per channel in DBI mode and delivers real-time acquisition and advanced serial data analysis capabilities.
Testwall can supply the used LeCroy SDA 11000, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the LeCroy SDA 11000.
