Tektronix
Tektronix SD32
DC to 500 MHz Bandwidth
700 ps Rise Time
2 Number of Channels
50 Ω Input Impedance
±0.5 V Dynamic Range
| Attribute | Value |
|---|---|
| Bandwidth | DC to 500 MHz |
| Rise Time | 700 ps |
| Number of Channels | 2 |
| Input Impedance | 50 Ω |
| Dynamic Range | ±0.5 V |
| Sensitivity Range | 10 mV/div to 100 mV/div |
| Connector Type | SMA |
| Compatible Systems | Tektronix 11000 Series Mainframes |
| Maximum Input Voltage | ±2 V (DC + Peak AC) |
| Operating Temperature | 0°C to +50°C |
| Model | SD32 |
|---|

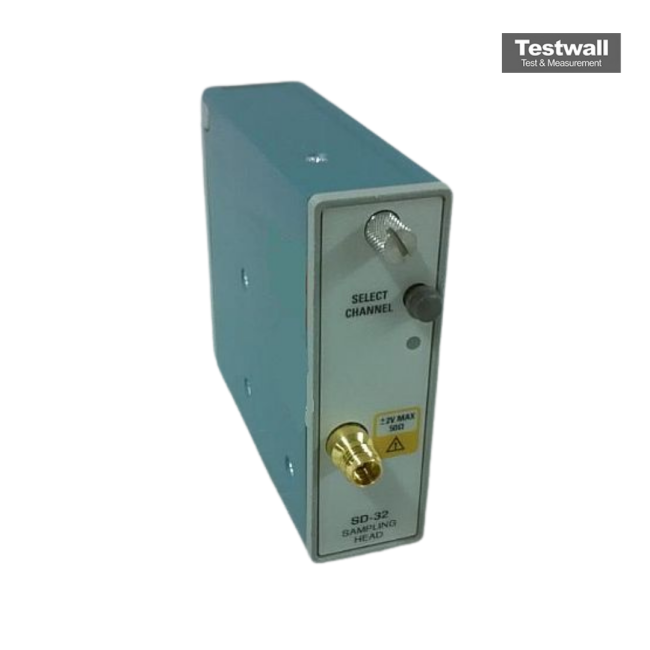

The Tektronix SD32 is a single-channel sampling head designed for high-speed signal acquisition with CSA803A and 11801B mainframes. It supports bandwidths over 50 GHz and rise times under 7 ps, ideal for ultrafast signal transitions.
With a 2.4 mm female connector and adapter for 2.92 mm systems, it ensures compatibility in microwave and communication testing environments.
Testwall can supply the used Tektronix SD32, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix SD32
