Teledyne LeCroy

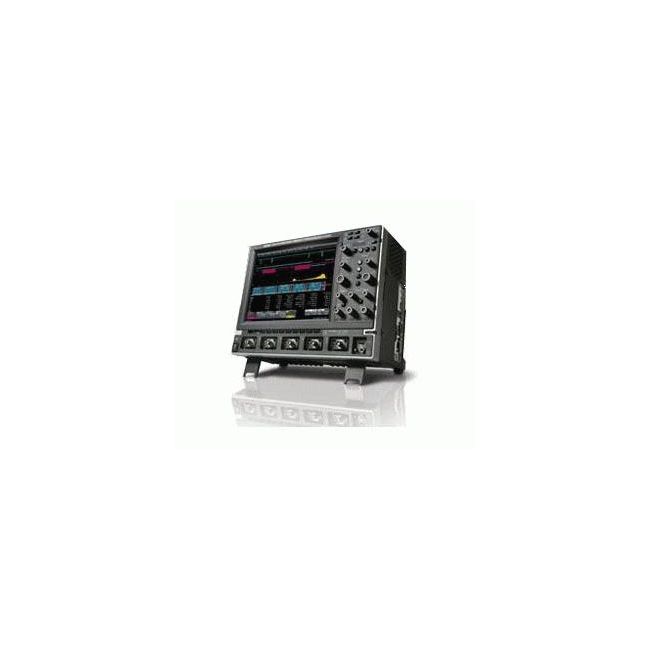

LeCroy WaveRunner 204MXi
4 Channel 5GSa/sec 2GHz Digital Oscilloscope
2 GHz Bandwidth
4 Number of Channels
10 GS/s (single channel), 5 GS/s (dual channel), 2.5 GS/s (all channels) Maximum Sample Rate
Up to 32 Mpts/ch (standard), expandable to 64 Mpts/ch Memory Depth
8 bits (up to 11 bits with enhanced resolution) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 2 GHz |
| Number of Channels | 4 |
| Maximum Sample Rate | 10 GS/s (single channel), 5 GS/s (dual channel), 2.5 GS/s (all channels) |
| Memory Depth | Up to 32 Mpts/ch (standard), expandable to 64 Mpts/ch |
| Vertical Resolution | 8 bits (up to 11 bits with enhanced resolution) |
| Timebase Range | 200 ps/div to 1000 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 10.4-inch color LCD touchscreen |
| Trigger Types | Edge, Width, Glitch, Interval, Dropout, Runt, Slew Rate, Pattern, TV, Serial (optional) |
| Connectivity / Interfaces | USB, Ethernet (LAN), GPIB (optional), CompactFlash card slot |
| Model | WaveRunner 204MXi |
|---|
The LeCroy WaveRunner 204MXi delivers 2 GHz analog bandwidth with 10 GS/s sampling rate and up to 25 Mpts/channel acquisition memory. It supports ERES resolution, waveform sequencing, and advanced mixed-signal analysis with integrated logic channel support.
This high-performance oscilloscope excels in waveform capture, digital decode, and flexible triggering—ideal for complex signal debugging and detailed measurement math operations.
Testwall can supply the used LeCroy WaveRunner 204MXi, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the LeCroy WaveRunner 204MXi.
