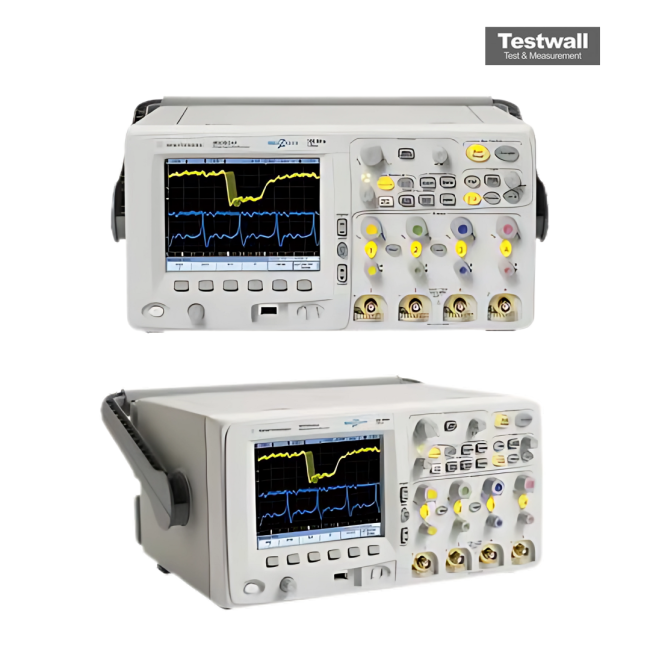

Keysight (Agilent) MSO6032A
| Attribute | Value |
|---|---|
| Bandwidth | 300 MHz |
| Number of Analog Channels | 2 |
| Number of Digital Channels | 16 |
| Maximum Sample Rate | 2 GSa/s |
| Memory Depth | 4 Mpts (standard), up to 12 Mpts (optional) |
| Vertical Resolution | 8-bit (up to 12-bit in high-resolution mode) |
| Display | 8.5-inch WVGA (800 x 480) color display |
| Waveform Update Rate | Up to 100,000 waveforms per second |
| Serial Protocol Triggering and Analysis | I2C, SPI, UART/RS232, CAN, LIN (optional) |
| Connectivity | USB, LAN (LXI), GPIB (optional) |
Keysight Technologies MSO6032A Options:
- MSO6032A - 8ML - 8 Mpts memory upgrade (Factory installed at time of initial scope purchase)
- MSO6032A - N2911A - 8 Mpts memory upgrade (User installed, typically ordered after initial scope purchase)
- MSO6032A - N2914A - DSO to MSO upgrade kit (User installed, typically ordered after initial scope purchase)
- MSO6032A - BAT - Rechargeable battery power option (Factory installed at time of initial scope purchase)
- MSO6032A - SEC - Secure environment mode option (Factory installed at time of initial scope purchase)
- MSO6032A - N5427A - Secure environment mode option (User installed)
- MSO6032A - N5406A - FPGA dynamic probe for Xilinx (MSO models only)
- MSO6032A - N5434A - FPGA dynamic probe for Altera (MSO models only)
- MSO6032A - N5424A - CAN/LIN automotive triggering and decode (4 and 4+16 channel models only)
- MSO6032A - N5423A - I2C/SPI serial decode option (for 4 and 4+16 channel models only)
- MSO6032A - N5432A - FlexRay automotive triggering and decode (4 and 4+16 channel models only)
- MSO6032A - AMS - CAN/LIN automotive triggering and decode, factory installed (4 and 4+16 channel models only)
- MSO6032A - LSS - I2C/SPI serial decode option, factory installed (4 and 4+16 channel models only)
- MSO6032A - FRS - FlexRay automotive triggering and decode, factory installed (4 and 4+16 channel models only)
- MSO6032A - N2916B - Rackmount Kit
- MSO6032A - 1180CZ - Testmobile scope cart
- MSO6032A - N2917B - Transit case
- MSO6032A - N2919A - Testmobile bracket for 1180CZ and 6000
- MSO6032A - 10833A - GPIB cable, 1 m long
- MSO6032A - N5916A - Rackmount kit
| Model | MSO6032A |
|---|
The Keysight Technologies MSO6032A Mixed Signal Oscilloscope delivers high-resolution debugging with 300 MHz bandwidth, 2 analog plus 16 digital channels, and a fast 2 GSa/s sample rate. Featuring up to 8 Mpts of MegaZoom III deep memory and a 256-level intensity display, it captures even the most elusive signals at 100,000 wfms/s.
Designed for analog, digital, and serial signal analysis, it supports versatile connectivity options including USB, LAN, GPIB, and XGA out. Tailored FPGA debugging software and battery-powered testing enhance on-site diagnostics.
Testwall can supply the used Keysight Technologies MSO6032A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight Technologies MSO6032A.
