Teledyne LeCroy

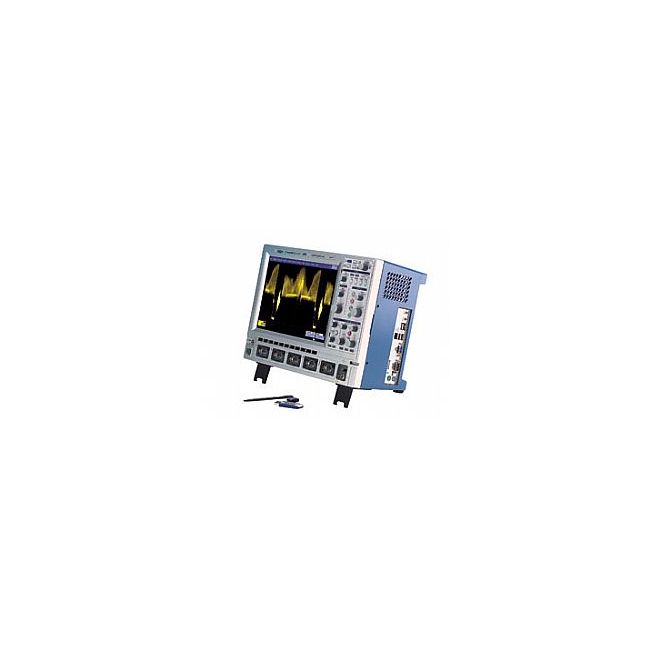

LeCroy WaveRunner 62Xi
2 Channel 5GSa/s 600MHz Digital Oscilloscope
600 MHz Bandwidth
2 Number of Channels
10 GS/s (single channel), 5 GS/s (dual channel) Sample Rate
Up to 32 Mpts/ch (standard), expandable to 64 Mpts/ch Memory Depth
8 bits (up to 11 bits with enhanced resolution) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 600 MHz |
| Number of Channels | 2 |
| Sample Rate | 10 GS/s (single channel), 5 GS/s (dual channel) |
| Memory Depth | Up to 32 Mpts/ch (standard), expandable to 64 Mpts/ch |
| Vertical Resolution | 8 bits (up to 11 bits with enhanced resolution) |
| Input Impedance | 1 MΩ or 50 Ω |
| Timebase Range | 200 ps/div to 1000 s/div |
| Display | 10.4-inch color LCD touchscreen |
| Trigger Types | Edge, Width, Glitch, Pattern, TV, Serial, and more |
| Connectivity / Interfaces | USB, Ethernet (LAN), GPIB (optional), CompactFlash |
| Model | WaveRunner 62Xi |
|---|
The LeCroy WaveRunner 62Xi is a mid-range oscilloscope with 2 channels, offering 600 MHz bandwidth and 5 GS/s per channel, extendable to 10 GS/s with interleaved mode. It includes 12.5 Mpts/channel standard memory.
It supports advanced functions like WaveStream, ERES, WaveScan search, and serial‑data triggers, with optional MSO for mixed-signal analysis.
Testwall can supply the used LeCroy WaveRunner 62Xi, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the LeCroy WaveRunner 62Xi.
