Teledyne LeCroy

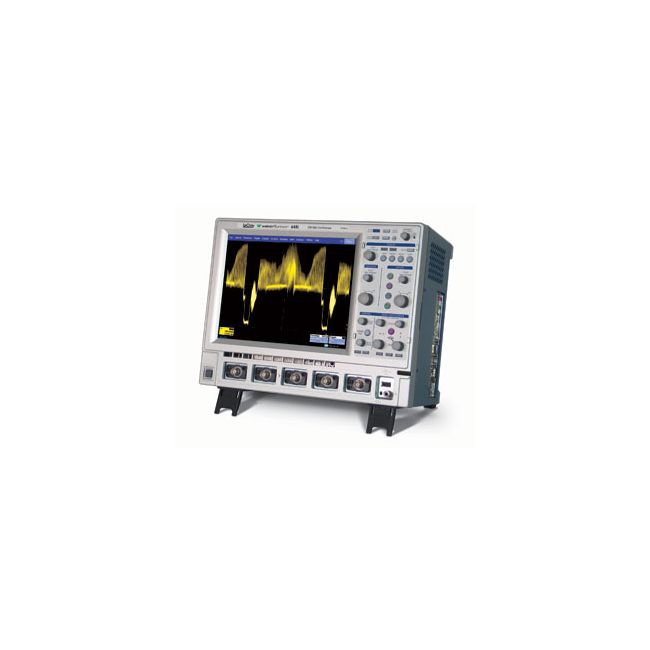

LeCroy WaveRunner 64MXi
4 Channel 5GSa/s 600MHz Digital Oscilloscope
600 MHz Bandwidth
4 Number of Channels
5 GS/s (single channel), 2.5 GS/s (all channels) Sample Rate
Up to 32 Mpts/ch (standard), expandable to 64 Mpts/ch Memory Depth
8 bits (up to 11 bits with enhanced resolution) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 600 MHz |
| Number of Channels | 4 |
| Sample Rate | 5 GS/s (single channel), 2.5 GS/s (all channels) |
| Memory Depth | Up to 32 Mpts/ch (standard), expandable to 64 Mpts/ch |
| Vertical Resolution | 8 bits (up to 11 bits with enhanced resolution) |
| Input Impedance | 1 MΩ or 50 Ω |
| Timebase Range | 200 ps/div to 1000 s/div |
| Display | 10.4-inch color LCD touchscreen |
| Trigger Types | Edge, Width, Glitch, Pattern, TV, Serial (I2C, SPI, UART, CAN, LIN), and more |
| Connectivity | USB, Ethernet (LAN), GPIB (optional), CompactFlash card slot |
| Model | WaveRunner 64MXi |
|---|
The LeCroy WaveRunner 64MXi is a 4-channel, 600 MHz oscilloscope delivering 5 GS/s sampling rate and 12.5 Mpts/channel memory (25 Mpts interleaved). It supports MSO (mixed-signal) input, high-resolution vertical measurements, and includes WaveScan, serial decode, and jitter/timing analysis tools.
Perfect for debugging complex signals, this device enables detailed signal diagnostics with superior speed and resolution.
Testwall can supply the used LeCroy WaveRunner 64MXi, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the LeCroy WaveRunner 64MXi.
