LeCroy WR6030
| Attribute | Value |
|---|---|
| Bandwidth | 600 MHz |
| Sample Rate | 2.5 GS/s |
| Number of Channels | 4 |
| Memory Depth | 2 Mpts/ch (up to 8 Mpts interleaved) |
| Vertical Resolution | 8-bit (up to 11-bit with enhanced resolution) |
| Timebase Range | 200 ps/div to 1000 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 10.4-inch color TFT LCD touchscreen |
| Trigger Types | Edge, Width, Glitch, Interval, Dropout, Slew Rate, Pattern, and more |
| Connectivity | USB, Ethernet (LAN), GPIB (optional), RS-232 |
LeCroy WR6030 Options:
- WR6030 - S - 2 Mpts/Ch, 4 Mpts/Ch
- WR6030 - M - 4 Mpts/Ch, 8 Mpts/Ch
- WR6030 - L - 8 Mpts/Ch, 16 Mpts/Ch
- WR6030 - VL - 12 Mpts/Ch, 24 Mpts/Ch
- WR6030 - WR6-GP - Internal Thermal Printer
- WR6030 - WR6-RHD - Removable HDD
- WR6030 - WR6-CDRW - CD-RW Upgrade
- WR6030 - WR6-JTA2 - Jitter and Timing Analysis
- WR6030 - WR6-PMA2 - PowerMeasure Analysis
- WR6030 - WR6-DFP2 - Digital Filter Package
- WR6030 - WR6-SDM - Serial Mask Package
- WR6030 - WR6-XMATH - Advanced Math Package
- WR6030 - WR6-XDEV - Developers Customization Kit
- WR6030 - WR6-NA - Norton Antivirus
- WR6030 - WR6-XMAP - Master Analysis Package (XMATH + XDEV + JTA2)
| Model | WR6030 |
|---|

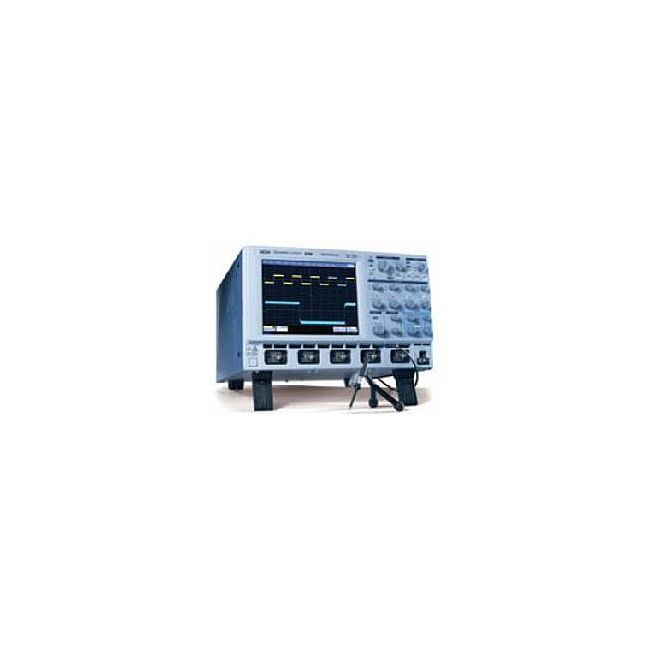

The LeCroy WR6030 is a high‑performance 350 MHz four‑channel oscilloscope designed for precision measurement. It offers 2.5 GS/s real‑time sampling per channel without interleaving, a memory depth of ~1 Mpts/channel (expandable to 2 Mpts), and a ±5 ppm timing stability ideal for jitter analysis. Features include analog persistence display, WavePilot, QuickZoom, and connectivity via USB, GPIB, VGA, RS‑232, with optional Ethernet.
Ideal for educational setups and field service work, it delivers reliable waveform analysis with powerful built‑in tools and flexible interface options to suit varied measurement environments.
Testwall can supply the used LeCroy WR6030, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the LeCroy WR6030.
