Tektronix TPS2012
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Channels | 2 |
| Sample Rate | 1 GS/s |
| Record Length | 2,500 points per channel |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 50 s/div |
| Input Impedance | 1 MΩ in parallel with 20 pF |
| Display | 5.7-inch color LCD, 320 x 240 resolution |
| Power Source | Battery-powered (BP290 or BP291) or AC adapter |
Tektronix TPS2012 Options:
Options available for the Tektronix TPS2000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TPS2012 - TPS2PWR1 - Power analysis application software
- TPS2012 - TPSBAT - Lithium-ion battery pack
- TPS2012 - TPSCHG - External battery charger

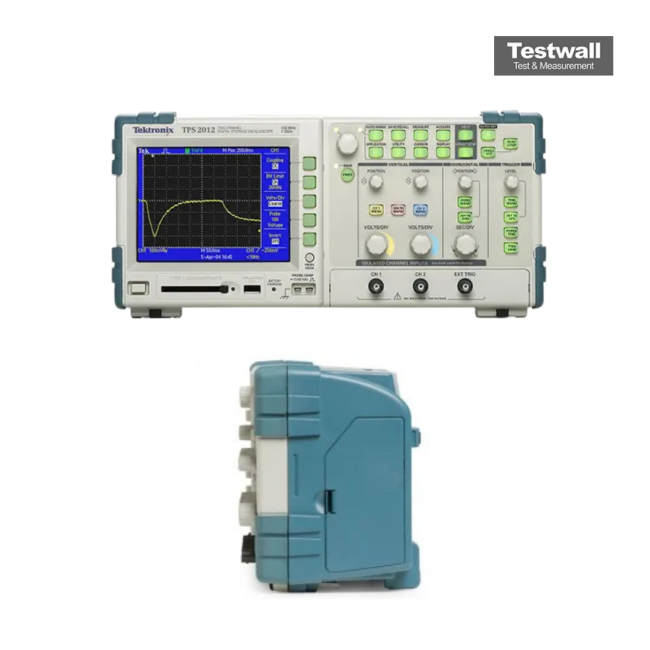

The Tektronix TPS2012 is a 100 MHz, 2-channel digital oscilloscope featuring isolated channel technology, up to 1 GS/s sampling rate, and 2.5k points per channel record length. It includes advanced triggering, FFT, math functions, and dual hot-swappable batteries for continuous use.
Ideal for both field and bench use, it supports isolated differential measurements up to 600 VRMS CAT II, with USB and CompactFlash connectivity for efficient data handling.
Testwall can supply the used Tektronix TPS2012, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TPS2012
