Magna Power XR4000-1
| Attribute | Value |
|---|---|
| Output Voltage | 4000 V |
| Output Current | 1 A |
| Output Power | 4000 W |
| Input Voltage | 208/240 VAC, Single Phase |
| Voltage Regulation | 0.05% of full scale |
| Current Regulation | 0.1% of full scale |
| Output Ripple (Voltage) | 0.05% RMS of full scale |
| Programming Interface | Analog, RS232, RS485, Ethernet (optional), GPIB (optional) |
| Cooling Method | Forced Air Cooling |
| Operating Temperature | 0°C to 50°C |
Magna Power XR4000-1 Options:
- XR4000-1 - +HS - High Slew Rate Output
- XR4000-1 - +GPIB - IEEE-488 GPIB Communications
- XR4000-1 - +LXI - LXI TCP/IP Ethernet Communications
- XR4000-1 - +RUG - Ruggedized
- XR4000-1 - 208SP - 208 Vac Single Phase Input (2 kW Models)
- XR4000-1 - 240SP - 240 Vac Single Phase Input (2 kW Models)
- XR4000-1 - 208 - 208 Vac 3-Phase Input
- XR4000-1 - 240 - 240 Vac 3-Phase Input
- XR4000-1 - 380 - 380/400 Vac 3-Phase Input
- XR4000-1 - 415 - 415 Vac 3-Phase Input
- XR4000-1 - 440 - 440 Vac 3-Phase Input
- XR4000-1 - 480 - 480 Vac 3-Phase Input
- XR4000-1 - C - Blank Front Panel
| Model | XR4000-1 |
|---|

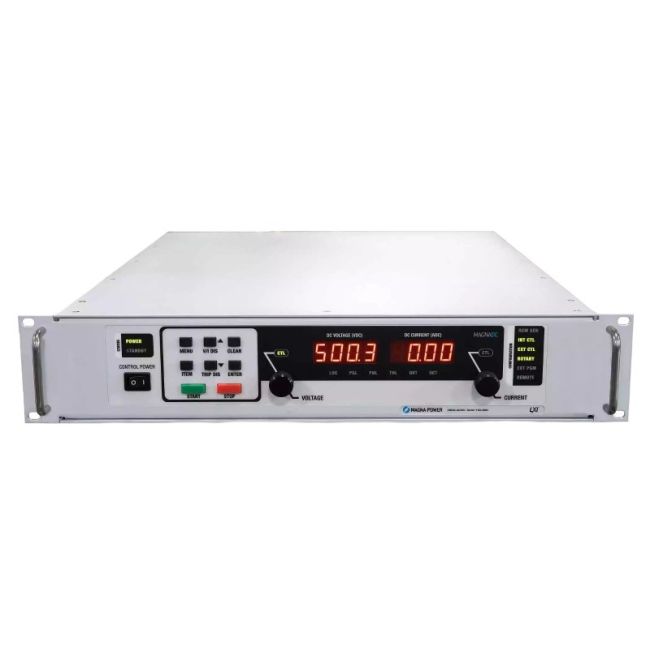

MAGNA-POWER XR4000-1 DC Power Supply
The Magna-Power XR4000-1 was designed from the ground up for high reliability and industry leading 2U (3.5 " height) rack-mount programmable power levels. The XR4000-1 features the largest voltage range in Magna-Power's product offering, up to 4000Vdc, all utilizing the company's signature current-fed power processing to deliver robust power conversion. In addition, high accuracy programming and monitoring levels allow confidence in power supply measurements, eliminating the need for external power meters.
All MagnaDC programmable DC power supplies utilize high-frequency IGBT-based power processing in current-fed topology. This topology adds an additional stage over the conventional voltage-fed topology for enhanced control and system protection, ensuring that even under a fault condition, the power supply will self-protect. In addition to its robust topology, key performance characteristics of MagnaDC programmable DC power supplies include:
- High-accuracy voltage and cur programming accuracy
- Class-leading line and load regulation performance
- High 3Φ AC input power factor with in-rush limiting circuitry
- Computer and user I/O isolated from the power supply output
Specifications for the MAGNA-POWER XR4000-1 DC Power Supply Include:
| Voltage | 4000V |
| Current | 1A |
| Total Power | 4000W |
| Efficiency | 93% |
