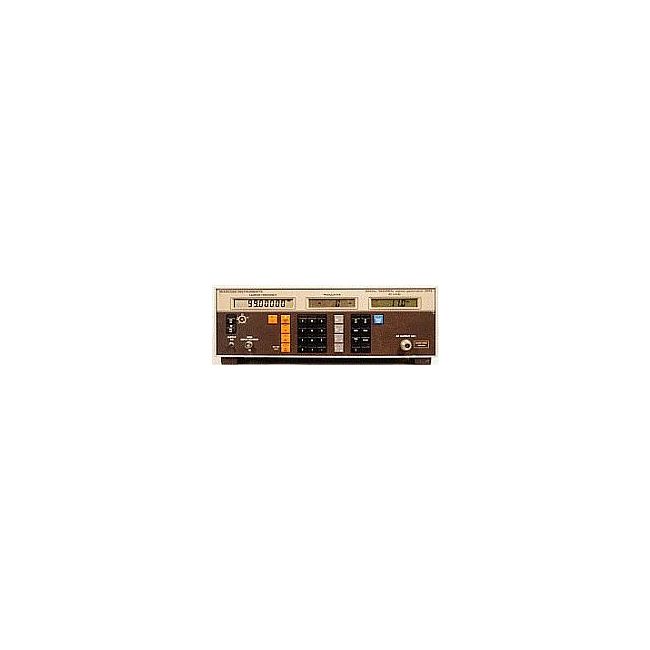

Marconi IFR Aeroflex 2019
| Attribute | Value |
|---|---|
| Frequency Range | 10 kHz to 1.35 GHz |
| FM Sensitivity | -137 dBm (typical) |
| Signal Generator Output Level | -137 dBm to +13 dBm |
| Frequency Resolution | 1 Hz |
| Modulation Types | AM, FM, Phase Modulation, Pulse Modulation |
| AF Frequency Range | 20 Hz to 25 kHz |
| Impedance | 50 Ohms |
| Display Type | LCD with backlight |
| Interface | GPIB (IEEE-488), RS-232 |
| Power Requirements | 90–265 VAC, 48–66 Hz |
Marconi IFR Aeroflex 2019 Options:
- 2019 - 46881-420J - Service manual H 52018-900S (Vol. 2)
- 2019 - 54433-001U - GPIB module
- 2019 - 54711-033E - Maintenance kit, includes r.f. extender cables, l.c.d. insertion and extraction tools etc.
- 2019 - 46883-506M - Rack mounting kit
- 2019 - 46883-511R - Front handle kit
- 2019 - 46881-365R - GPIB manual H 54811-010P
- 2019 - 43129-189U - GPIB lead assy.
- 2019 - 46883-408K - GPIB IEEE/IEC connector adaptor
- 2019 - 43126-012S - RF connecting cable TM 4969/3; 50 Ω, 1.5 m (5 ft) BNC
- 2019 - 54411-051X - Impedance adaptor 50/75 Ω
- 2019 - 54311-092P - Adaptor; type N male to BNC female
| Model | 2019 |
|---|
The Marconi-IFR-Aeroflex 2019 RF Signal Generator delivers high stability, low-noise output, and supports multiple modulation formats for precise communication testing and calibration. Its compact and rugged design ensures consistent performance in demanding environments, while the intuitive interface provides seamless operation for technical users in research and industry.
Ideal for advanced communication testing, the 2019 generates clean, distortion-free signals, making it a trusted choice in laboratories and system calibration tasks where accuracy is paramount.
Testwall can supply the used Marconi-IFR-Aeroflex 2019, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Marconi-IFR-Aeroflex 2019.
