Marconi IFR Aeroflex 56910/900
100 Hz to 2.999 GHz Frequency Range
1 Hz Frequency Resolution
-137 dBm to +13 dBm Output Level Range
50 Ohms Output Impedance
AM, FM, Phase, Pulse Modulation Types
| Attribute | Value |
|---|---|
| Frequency Range | 100 Hz to 2.999 GHz |
| Frequency Resolution | 1 Hz |
| Output Level Range | -137 dBm to +13 dBm |
| Output Impedance | 50 Ohms |
| Modulation Types | AM, FM, Phase, Pulse |
| FM Deviation Range | Up to 10 MHz |
| AM Depth Range | 0% to 99.9% |
| Spectral Purity (Phase Noise) | -116 dBc/Hz at 20 kHz offset (1 GHz carrier) |
| Power Supply | 90–132 V / 195–253 V AC, 48–66 Hz |
| Interface / Connectivity | GPIB (IEEE-488) Remote Control Interface |
Marconi IFR Aeroflex 56910/900 Options:
- 6960B - Option 001 - GPIB
- 6960B - Option 002 - Rear sensor input
- 6960B - Option 003 - Storage pouch mounted on top of instrument
- 6960B - Option 004 - External DC operation
- 6960B - 43138/663 - 1.5 m Power Sensor Cable
- 6960B - 43138/154 - DC Supply Lead (Option 004 only)
- 6960B - 54417/002 - Waveguide 22 to 2.92mm coax transition
- 6960B - 43138/664 - 3m Power Sensor Cable
- 6960B - 43138/665 - 10m Power Sensor Cable
- 6960B - 43138/666 - 25m Power Sensor Cable
- 6960B - 43138/667 - 50m Power Sensor Cable
- 6960B - 54124/022 - Stowage Cover
- 56910/900 - 56910/900 - 10 MHz to 20GHz (-30 dBm to +20 dBm) Type N
- 56911/900 - 56911/900 - 10 MHz to 20GHz (-30 dBm to +20 dBm) APC 7
- 56912/900 - 56912/900 - 30 kHz to 4.2GHz (-30 dBm to +20 dBm) Type N
- 56913/900 - 56913/900 - 10 MHz to 26.5GHz (-30 dBm to +20 dBm) MPC 3.5
- 56914/001 - 56914/001 - 10 MHz to 40GHz (-30 dBm to +20 dBm) 2.92mm
- 56914/002 - 56914/002 - 10 MHz to 40GHz (-30 dBm to +20 dBm) 2.92mm plus waveguide 22 coax transition and calibration table
- 56914/003 - 56914/003 - 10 MHz to 46GHz (-30 dBm to +20 dBm) 2.92mm
- 56919/90075 - 56919/90075 - 30 kHz to 3GHz (-30 dBm to +20 dBm) Type N
- 56920/900 - 56920/900 - 10 MHz to 20GHz (-70 dBm to -20 dBm) Type N
- 56923/900 - 56923/900 - 10 MHz to 26.5GHz (-70 dBm to -20 dBm) MPC 3.5
- 56924/001 - 56924/001 - 10 MHz to 40GHz (-70 dBm to -20 dBm) 2.92mm
- 56924/002 - 56924/002 - 10 MHz to 40GHz (-70 dBm to -20 dBm) 2.92mm plus waveguide 22 coax transition and calibration table
- 56924/003 - 56924/003 - 10 MHz to 46GHz (-70 dBm to -20 dBm) 2.92mm
- 56930/900 - 56930/900 - 10 MHz to 18GHz (-15 dBm to +35 dBm) Type N
- 56932/900 - 56932/900 - 30 kHz to 4.2GHz (-15 dBm to +35 dBm) Type N
- 56934/001 - 56934/001 - 10 MHz to 40GHz (-15 dBm to +30 dBm) 2.92mm
- 56934/002 - 56934/002 - 10 MHz to 40GHz (-15 dBm to +30 dBm) 2.92mm plus waveguide 22 coax transition and calibration table
- 56934/003 - 56934/003 - 10 MHz to 46GHz (-15 dBm to +30 dBm) 2.92mm
- 56930/002 - 56930/002 - 10 MHz to 18GHz (-5 dBm to +44 dBm) Type N
- 56932/002 - 56932/002 - 30 kHz to 4.2GHz (-5 dBm to +44 dBm) Type N
| Model | 56910/900 |
|---|

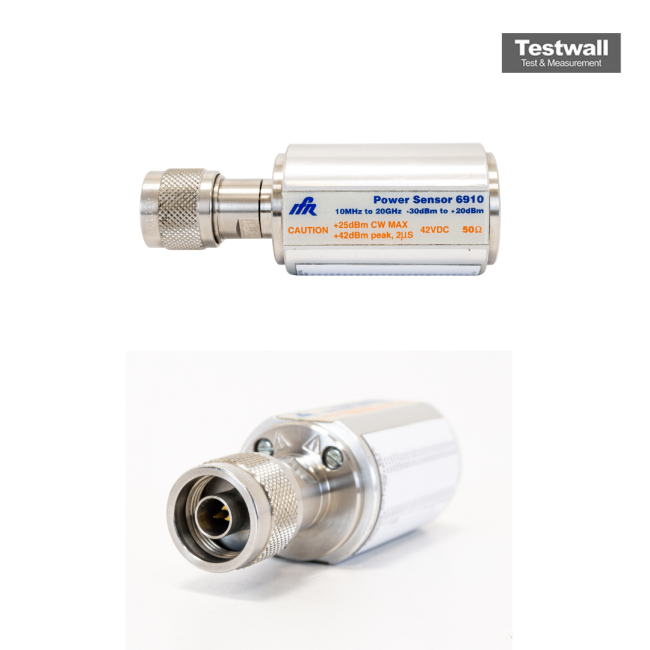

The Aeroflex IFR 56910/900 Power Sensor covers a frequency range of 10 MHz to 20 GHz with input power from -30 dBm to +20 dBm. It is equipped with a Type N connector, offering high accuracy and stability in RF and microwave power measurements across a broad spectrum.
This sensor is ideal for applications requiring precise power monitoring in RF systems, supporting both lab testing and field measurements.
Testwall can supply the used Aeroflex IFR 56910/900, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Aeroflex IFR 56910/900.
