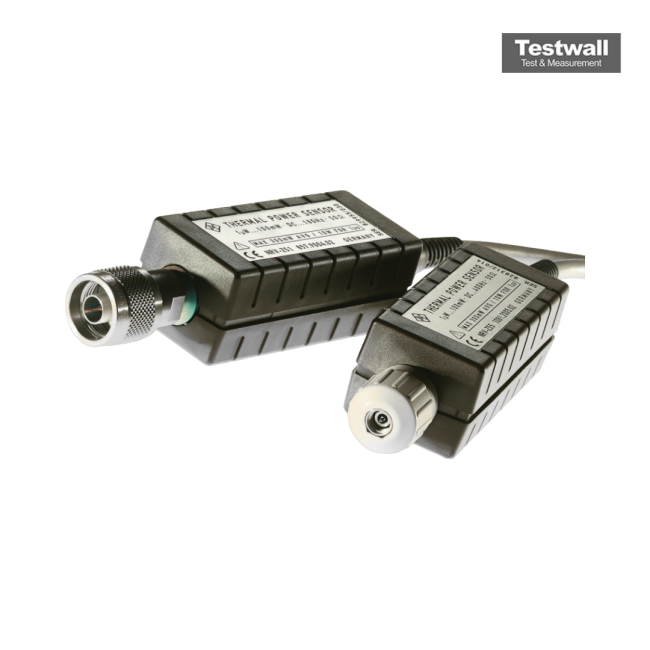

Rohde & Schwarz NRV-Z2
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 18 GHz |
| Power Measurement Range | -67 dBm to +20 dBm |
| Connector Type | N-type (50 Ω) |
| Measurement Uncertainty | ±0.9 dB (typical) |
| SWR (Standing Wave Ratio) | ≤ 1.15 (up to 12.4 GHz), ≤ 1.25 (up to 18 GHz) |
| Sensor Type | Thermal (Diode-based) Power Sensor |
| Compatible Instruments | Rohde & Schwarz NRV, NRVS, and NRVD Power Meters |
| Operating Temperature Range | 0 °C to +55 °C |
| Storage Temperature Range | -40 °C to +70 °C |
| Cable Length | Approximately 0.9 m (sensor cable included) |
Rohde & Schwarz NRV-Z2 Options:
- NRV-Z2 - 0828.3218.02 - 500 mW, 50 Ω, 18 GHz (standard cable)
- NRV-Z2 - 0828.3218.03 - 500 mW, 50 Ω, 18 GHz with 5 m cable
| Model | NRV-Z2 |
|---|
The Rohde & Schwarz NRV-Z2 is a 50 Ohm, 500 mW Power Sensor designed for compatibility with URV5 Millivolt Meters and NRV Power Meters, covering frequencies from 10 MHz to 18 GHz. It supports precise power measurements from 20 nW to 500 mW with a max average power of 2 W and peak power of 10 W.
Its minimal zero offset (±10 nW) and low display noise (4 nW) ensure accurate readings, while the device maintains an exceptional SWR across the full frequency range, optimizing performance for RF and microwave measurements.
Testwall can supply the used Rohde & Schwarz NRV-Z2, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz NRV-Z2.
