Marconi IFR Aeroflex TCAS201
| Attribute | Value |
|---|---|
| Function | TCAS II Traffic Alert and Collision Avoidance System Test Set |
| Frequency Range | 1030 MHz (interrogation) / 1090 MHz (reply) |
| Output Power | Up to 57 dBm peak pulse power |
| TCAS Versions Supported | TCAS II Version 6.04 and Version 7.0 |
| Simulation Capability | Simulates up to 30 aircraft intruder targets simultaneously |
| Reply Formats Supported | Mode A, Mode C, Mode S (short and long squitter) |
| Interface | RS-232 serial interface for remote control and data logging |
| Power Supply | AC mains 100–240 V, 50/60 Hz |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Standards Compliance | RTCA DO-185A, FAA TSO-C119b, ICAO Annex 10 |
| Model | TCAS201 |
|---|

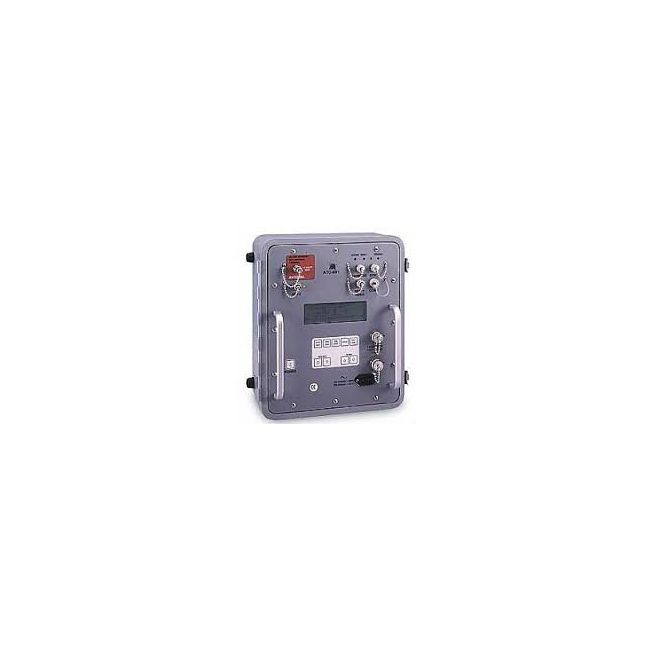

The Marconi IFR Aeroflex TCAS201 is a rugged, ramp‑based TCAS verification system engineered for validating airborne collision avoidance systems. It supports threat aircraft profiling and accurate simulation of Mode C and Mode S replies, monitors and decodes TCAS interrogations, and allows realistic Traffic Advisory (TA) and Resolution Advisory (RA) alert simulation. Built for outdoor operation, it features an internal battery and ruggedized construction, while delivering precise measurements of interrogator frequency, output power, attenuation accuracy, and whisper‑shout dynamics.
This solution is ideal for supporting certification requirements, scenario modeling, STC testing, and routine maintenance tasks, offering flexible and reliable performance in diverse operational environments.
Testwall can supply the used Marconi IFR Aeroflex TCAS201, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Marconi IFR Aeroflex TCAS201.
