Megger ADX-15-RLC
| Attribute | Value |
|---|---|
| Test Voltage | Up to 15 kV AC/DC |
| Measurement Functions | Inductance (L), Resistance (R), Capacitance (C) |
| Frequency Range | 15 Hz to 400 Hz |
| Capacitance Measurement Range | 0.1 pF to 100 µF |
| Inductance Measurement Range | 1 µH to 10,000 H |
| Resistance Measurement Range | 1 mΩ to 100 MΩ |
| Dissipation Factor (tan δ) Accuracy | ±0.0005 (at reference conditions) |
| Power Supply | 85–265 V AC, 50/60 Hz |
| Operating Temperature Range | -10°C to +50°C (14°F to 122°F) |
| Safety Standard Compliance | IEC 61010-1, CE Marked |
Megger ADX-15-RLC Options:
- ADX-15-RLC - 1013-911 - ADX 4 kV Standard with DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests only
- ADX-15-RLC - 1013-912 - ADX 6 kV Standard with DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests only
- ADX-15-RLC - 1013-913 - ADX 12 kV Standard with DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests only
- ADX-15-RLC - 1013-914 - ADX 15 kV Standard with DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests only
- ADX-15-RLC - 1013-916 - ADX-4-RLC: ADX 4 kV with RLC, DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests
- ADX-15-RLC - 1013-917 - ADX-6-RLC: ADX 6 kV with RLC, DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests
- ADX-15-RLC - 1013-918 - ADX-12-RLC: ADX 12 kV with RLC, DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests
- ADX-15-RLC - 1013-919 - ADX-15-RLC: ADX 15 kV with RLC, DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests
- ADX-15-RLC - 1013-920 - ADX-4-RLC-PD: ADX 4 kV with RLC, DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests
- ADX-15-RLC - 1013-921 - ADX-6-RLC-PD: ADX 6 kV with RLC, DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests
- ADX-15-RLC - 1013-922 - ADX-12-RLC-PD: ADX 12 kV with RLC, DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests
- ADX-15-RLC - 1013-923 - ADX-15-RLC-PD: ADX 15 kV with RLC, DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests
- ADX-15-RLC - 1013-925 - ADX-4-RLC-PD-PPI: ADX 4 kV with RLC, DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, Partial Discharge tests, and Power Pack Interface
- ADX-15-RLC - 1013-926 - ADX-6-RLC-PD-PPI: ADX 6 kV with RLC, DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, Partial Discharge tests, and Power Pack Interface
- ADX-15-RLC - 1013-927 - ADX-12-RLC-PD-PPI: ADX 12 kV with RLC, DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, Partial Discharge tests, and Power Pack Interface
- ADX-15-RLC - 1013-928 - ADX-15-RLC-PD-PPI: ADX 15 kV with RLC, DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, Partial Discharge tests, and Power Pack Interface
- ADX-15-RLC - 1014-110 - Footswitch: Operators initiate tests using the foot switch rather than the ADX front panel test switch during coil testing
- ADX-15-RLC - 1014-109 - Megger Baker Test Status Indication Light Equipment Stop (TSIL-ES): Remote accessory box for ADX equipment stop with a button press; displays flashing red light when actively testing and green light when no testing is in progress
- ADX-15-RLC - 1014-106 - ADX Standard Test Lead Set
- ADX-15-RLC - 1014-107 - ADX Custom Test Lead Set
- ADX-15-RLC - 1014-115 - Pelicase
- ADX-15-RLC - 1014-117 - ADX Test Lead - 15 kV Black
- ADX-15-RLC - 1014-114 - ADX Backpack
- ADX-15-RLC - 1014-111 - ADX Keyboard
- ADX-15-RLC - 1014-116 - ADX Test Lead - 15 kV Red and labeling kit
- ADX-15-RLC - 1014-112 - ADX Front Cover
| Model | ADX-15-RLC |
|---|

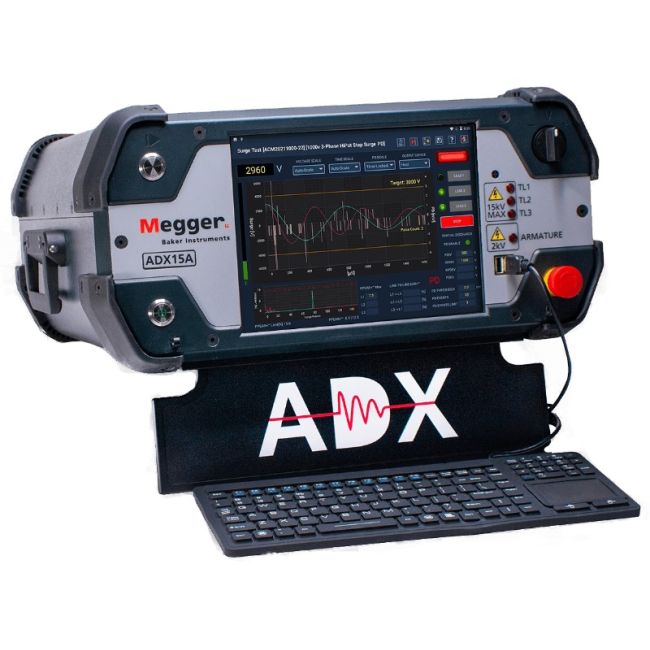

The Megger ADX-15-RLC Automated Static Motor Analyzer is a high-performance motor testing system designed for modern industrial environments. It features IEC61010-compliant test leads rated at 16 kV, offering flexibility with individual or set replacements for field efficiency. The analyzer supports low-voltage RLC (Resistance, Inductance, Capacitance) measurements, DC Insulation Resistance tests (IR, DA, PI), DC HiPot (Standard, Step, Ramp), and Surge testing modes, ensuring comprehensive electrical diagnostics.
With advanced ADX software, users can configure assets, set up tests, and manage routes seamlessly. Its PowerDB Dashboard enables secure cloud-based data analysis, while multiple operation modes (Manual, Automatic, Sequence) enhance adaptability across various testing requirements.
Testwall can supply the used Megger ADX-15-RLC Automated Static Motor Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Megger ADX-15-RLC Automated Static Motor Analyzer.
