Fluke 369-FC
| Attribute | Value |
|---|---|
| AC Current Measurement Range | Up to 1000 A AC |
| DC Current Measurement Range | Up to 1000 A DC |
| True-RMS Measurement | Yes |
| Wireless Connectivity | Bluetooth (Fluke Connect enabled) |
| Display Type | Backlit LCD |
| Jaw Opening | 46 mm (1.8 in) |
| Voltage Measurement | AC/DC Voltage up to 600 V |
| Resistance Measurement | Up to 60 kΩ |
| Data Logging | Min/Max/Average recording with Fluke Connect app compatibility |
| Safety Rating | CAT III 600 V, CAT IV 300 V |
| Model | 369-FC |
|---|

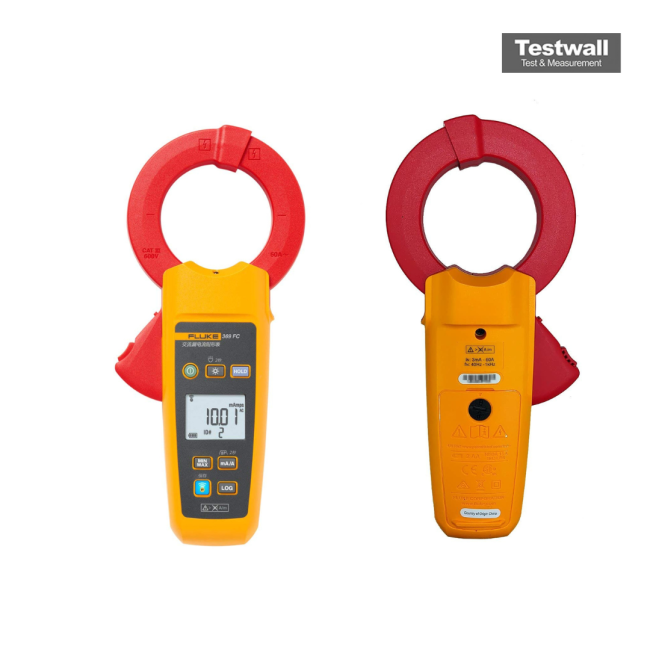

Fluke 369-FC Wireless Leakage Cur Clamp
The Fluke 369-FC Wireless Leakage Cur Clamp helps users to detect, document, record and compare leakage cur readings over time as a means of preventing unplanned downtime, and identifying intermittent GFCI and RCD trips, without taking equipment off line. It has large diameter jaw (61 mm) for work with larger conductors. The clamp's jaw is fully shielded to accurately capture very small leakage signals, and to minimize external electromagnetic interference.
Fluke 369-FC Wireless Leakage Cur Clamp offers wireless data connectivity via Fluke Connect. As part of Fluke Connect €”the industry's largest system of software and more than 40 wireless test tools €”the 369 FC allow you to track changes in leakage cur over time, helping to identify potential problems before they turn into major failures. Fluke 369-FC Wireless Leakage Cur Clamp provides true-rms measurements for accuracy when measuring complex, non-sinusoidal waveforms. It also features selectable filter function to eliminate unwanted noise and forward-facing LED worklight for use in dark wiring cabinets.
Specifications for the Fluke 369-FC Wireless Leakage Cur Clamp Include:
| AC ampere range | 3 mA, 30 mA, 300 mA, 3 A, 30 A, 60 A |
| Frequency | 40 Hz to 1 kHz |
| Display refresh rate | 4 times/sec |
| Crest factor | 3 |
