Megger ADX-15
| Attribute | Value |
|---|---|
| Test Voltage Range | Up to 15 kV DC |
| Insulation Resistance Measurement Range | Up to 35 TΩ |
| Output Current | Up to 3 mA |
| Voltage Accuracy | ±2% of set voltage |
| Resistance Accuracy | ±5% (up to 10 TΩ) |
| Test Functions | Spot test, Time Resistance (TR), Polarization Index (PI), Dielectric Absorption Ratio (DAR), Step Voltage, Ramp Voltage |
| Power Supply | Rechargeable NiMH battery pack with AC adapter/charger |
| Display | Large backlit LCD with analog arc and digital readout |
| Safety Rating | CAT III 600 V, CAT II 1000 V |
| Operating Temperature Range | -10°C to 50°C (14°F to 122°F) |
Megger ADX-15 Options:
- ADX-15 - Standard - DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests only (Part No. 1013-914)
- ADX-15 - RLC - Adds low voltage Resistance, Inductance, and Capacitance tests to DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), and Surge tests (Part No. 1013-919)
- ADX-15 - RLC-PD - Adds low voltage Resistance, Inductance, and Capacitance tests, DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests (Part No. 1013-923)
- ADX-15 - RLC-PD-PPI - Adds low voltage Resistance, Inductance, and Capacitance tests, DC Insulation Resistance (IR, DA, PI), DC HiPot (standard, Step, Ramp), Surge, and Partial Discharge tests; includes Power Pack Interface (Part No. 1013-928)
| Model | ADX-15 |
|---|

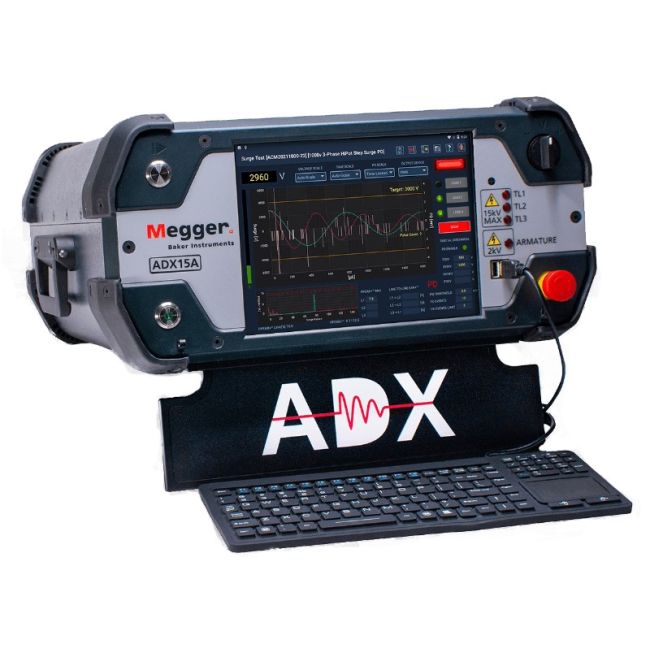

The Megger ADX-15 Automated Static Motor Analyzer is engineered for advanced motor diagnostics, featuring IEC61010-compliant test leads rated at 16 kV, available individually or in cost-effective sets. It supports critical tests such as DC Insulation Resistance (IR, DA, PI), DC HiPot (Standard, Step, Ramp), and Surge tests, ensuring accuracy across Manual, Automatic, and Sequence testing modes.
With its PowerDB Dashboard, the ADX-15 integrates cloud-based analytics, asset-centric testing, and route management, enabling streamlined configuration, adaptable search functions, and efficient data handling for modern industrial environments.
Testwall can supply the used Megger ADX-15 Automated Static Motor Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Megger ADX-15 Automated Static Motor Analyzer.
